IP67 Solid Pins DC1000V 30A Solar Panel Connectors

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number SAA-T4-S
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Solid Pins Solar Connector Material PPO
Gender Female And Male Rated Voltage 1000VDC
Protection Degree IP67 Color Black
Contact Material Copper/tin Plated Pins Solid Pins
High Light

DC1000V Solar Panel Connectors

,

IP67 Solar Panel Connectors

,

30A Solar Panel Connectors

Leave a Message
Product Description



IP67 solid pins solar connector DC 1000V for Solar Panel Installation Multi Connection



The Features of solar connector


1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
8. Rated Voltage: 1000V
9. Rated Current: 30A

10.Pins: Solid pins



Type: connector PV004
Electrical Features:
Rated Current 25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage 1000V DC(TUV),600V(UL)
Contact Resistance ≤0.3mΩ
Protection Class Class II
Mechanical Features:
Temperature Range -40 oC~+90oC
Protection Degree IP2X,unmated;IP67,mated
Wire Size Range 2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force 200 Newton
Material Features:
Insulation Material PPO
Contact Material Copper,Tin plated
Flame Class UL94-V0 or UL94-5VA



Advantage:



• Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly

• High mechanical endurance

• High current and voltage carrying:30A,1000VDC

• Low transition resistance

• Innovative sealed,waterproof,dust resistance design:IP68

• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

• Approved by TUV

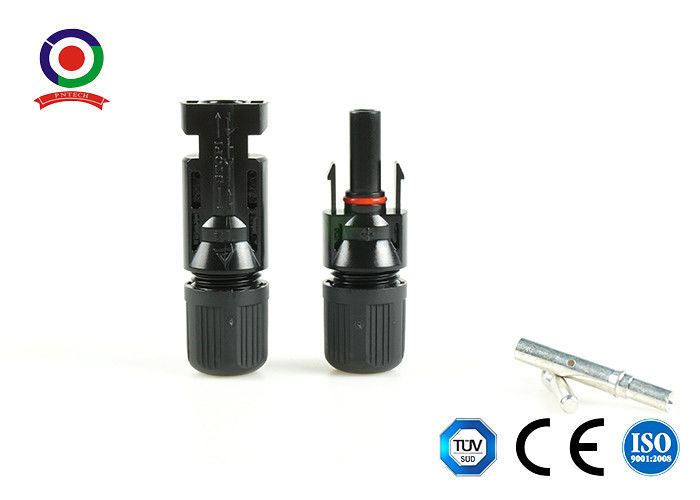

Picture of IP67 solar connector

IP67 Solid Pins DC1000V 30A Solar Panel Connectors 0
