Crimp Connection 4000W 2.5mm2 6.0mm2 3 to 1 T Solar Branch Connector
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||T Branch Connector 3 To1||Protection Class||Class II|
|Gender||Female And Male||Rated Voltage||1000VDC|
|Protection Degree||IP67||Rated Current||30A|
6.0mm2 Solar Branch Connector,
2.5mm2 Solar Branch Connector,
4000W Solar Branch Connector
Ce IP67 2.5mm2~6.0mm2 Male Female DC 1000V T branch 3 to1 Solar Cable Connector
Contact presistance: <5mΩ
Safety class: class II
Waterproof grade: IP 67
Cable standard: 2.5/4/6mm2
Flame retardant grade: UL94-V0
Insulation material: PPO
Composite contact material: Copper, silver plating Solar T-branch connector (CE approval)
|Product Name||3 to 1 T branch connector|
|voltage rating||≤DC 1000V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

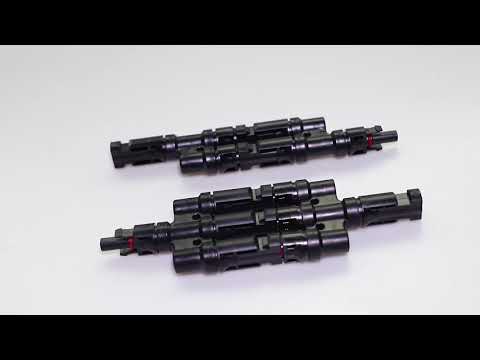

Picture of 3 to 1 T branch connector
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
