Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV005 1500V
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pairs per day
Application: |
Solar System Connection |
Gender: |
Male And Female |
Product Name: |
Solar Panel Connector |
Material: |
PPO |
Rated Voltage: |
1500VDC |
Rated Current:: |
30A |
Application: |
Solar System Connection |
Gender: |
Male And Female |
Product Name: |
Solar Panel Connector |
Material: |
PPO |
Rated Voltage: |
1500VDC |
Rated Current:: |
30A |
Waterproof IP68 1500V Solar Panel Connector for 2.5/4/6mm2 PV Wire TUV CE
Connector Description:
1. Plastic part material: PPO
2. Rated voltage: 1500V DC
3. Rated current: 30A
4. Contact resistance≤ 0.5MΩ
5. Safe class: class 2
6. Temperature range: -40°C -85°C
7. Section area of cable: 2.5,4,6mm2
8. Degree of protection: IP67
9. Flame class: UL94-V0
10. Hardware terminal: tinned copper
| voltage rating | ≤DC 1500V |
| current rating | ≤30A(3.5-6mm2) |
| pollution degree | CAT III/2 |
| rated power | 4000W |
| waterproof level | IP67 |
| shell material | resistance material,PP0 |
| connecting system | cromp connection |
| contact resistance of plug and connectors | 1MΩ |
| testing voltage | DC 6000V(50Hz,1min) |
| contact material | copper, Ag plated |
| flame class | UL94-VO |
| safety class | II |
| suitable cable | OD4.5-8.5(2.5-6.0mm2) |
| insertion force/withdrawal force | ≤50N/≥50N |
| operation temperature | -40ºC~+125ºC |
| inner material | copper tin plating |
| certificate | CE, RoHS,CCC |
Assembly Instructions
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

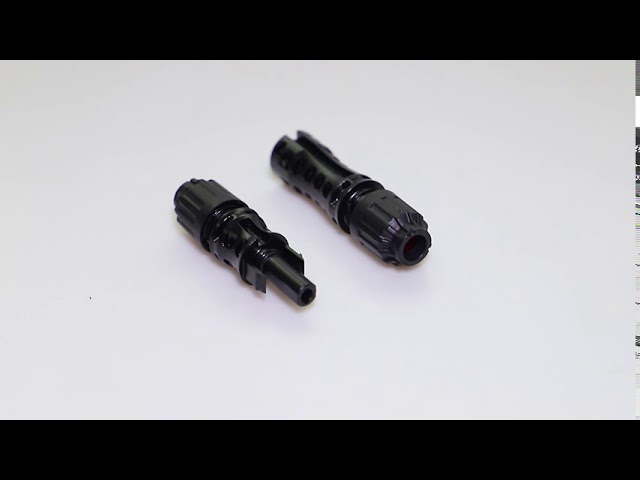

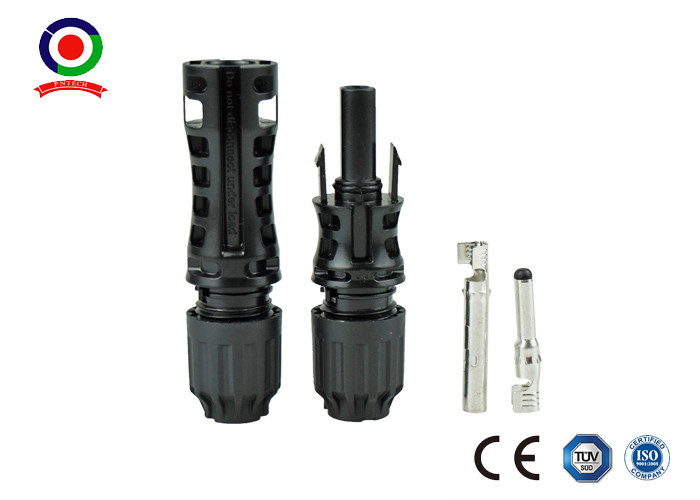

Picture of 1500V solar panel connector
