Anti UV Double Insulation 4mm Solar Panel Extension Cable
|Product Name||Solar Panel Extension Cable||Packing||PP Bag|
|Solar Cable Type||4mm||Rated Current||30A|
4mm Solar Panel Extension Cable,
5mΩ Solar Panel Extension Cable,
Anti UV Solar Panel Cable
UV Resistant Double Insulation 4mm solar panel extension cable
Solar cable Description
56/.285 (4.0mm2) Tinned Annealed Copper
XLPE Insulated. 0.6/1KV core.
630/1000Vdc SOLAR Cable oversheathed with XLPO
Oxygen Free Copper. RoHS Compliant XLPO
|mm²||No.x ø (mm)||mm||Ω /km||mm||VAC/DC||A||Kg/km|
|PV-1*1.5 mm²||1.5||30x ø 0.25||1.6||13.5||4.8||1000/1800||30||35|
|PV-1*2.5 mm²||2.5||50x ø 0.25||2.0||8.21||5.3||1000/1800||41||50|
|PV-1*4.0 mm²||4.0||56x ø 0.3||2.6||5.09||6.1||1000/1800||55||70|
|PV-1*6.0 mm²||6.0||84x ø 0.3||3.3||3.39||7.1||1000/1800||70||95|
|Rated current:||22A(2.5mm2) , 30A(4mm2,6mm2)|
|Contact material:||Silver plated copper|
|Contact resistance of plug connectors:||≤5mΩ|
|Locking system:||Snap in|
|Rated voltage||TUV 1000V DC|
|Suitable cable cross sections||2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG|
|Test voltage||DC 8KV 1min|
|Protection class||Class II|
|Terminal Material||Tinned copper|
|Contact resistance||≤ 5mΩ|
|IP rating||IP67(IEC 60529)|
|Pull-out force||≥ 50N|
|Insertion Force||≤ 50N|
|Test temperature||-40ºC~ +85ºC|
|Flame Class||UL94V - 0|
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

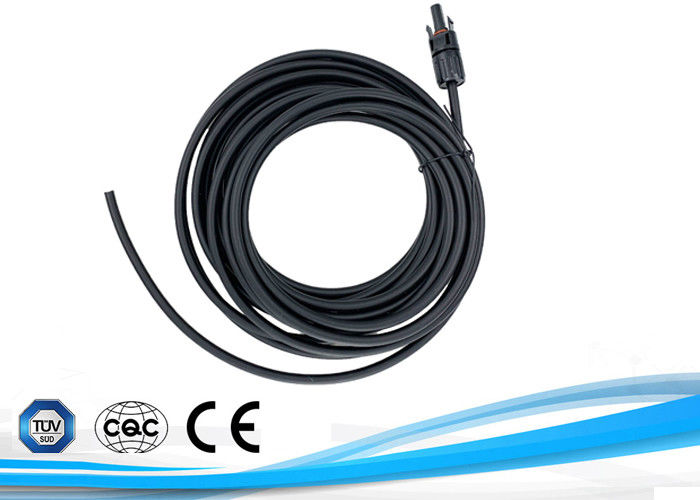

Picture of 4mm Solar Panel Extension Cable
