Wire Xlpe Insulated Solar Branch Connector PPO Material With 1500V Fuse

China Wire Xlpe Insulated Solar Branch Connector PPO Material With 1500V Fuse supplier
Wire Xlpe Insulated Solar Branch Connector PPO Material With 1500V Fuse supplier Wire Xlpe Insulated Solar Branch Connector PPO Material With 1500V Fuse supplier

Large Image :  Wire Xlpe Insulated Solar Branch Connector PPO Material With 1500V Fuse

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: CE/ISO9001
Model Number: PV004-2T1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pairs per day
Contact Now
Detailed Product Description
Product Name: Connector Cable With 1500V Fuse Material: PPO
Protection Degree: IP67 Rated Current:: 30A
Color: Black Packing: PP Bag
High Light:

y branch connector

,

solar panel branch connector



wire xlpe Insulated photovoltaic electrical Connector cable with 1500V fuse



Description:



Hot Sale Product used for HuaWei Inverter
4mm2 12AWG Solar cable Black color
4mm2 12AWG Solar cable Red color



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

Construction: Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.



Product Name: Y branch connector
Cable length: 35cm
Working current: 20A(4mm2), 30A(6mm2)
Withstand voltage: DC1500V
Contacting resistance: <2 mΩ
Insulation resistance: > 500MΩ
Suitable single core cable section: 2.5mm2, 4mm2, 6mm2
Cable outer diameter: Φ5mm -Φ 7mm
Ambient temperature: -40 C~ + 105 C
Protection class: IP67
Safety class: II
Shell material: PPO
Contacting material: copper, tin plated
Terminal connecting method: pressure welding
Fuse  10A,15A.20A,25A



Advantage:



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

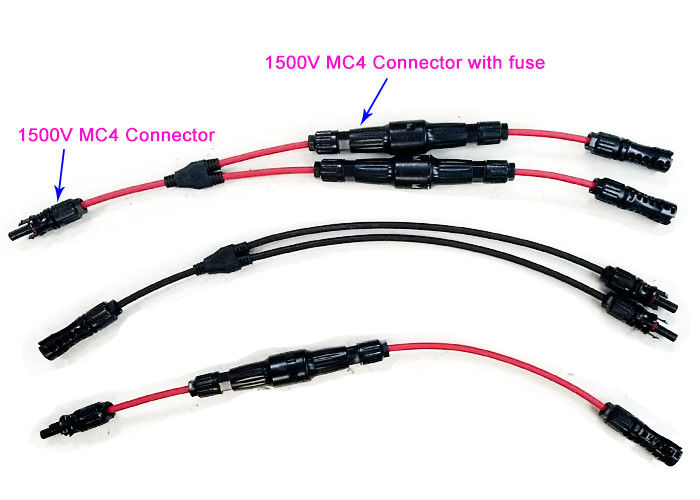

Picture of  connector cable with 1500V fuse
