Robust DC Connector Adapter IP67 Waterproof 4000W Power CE Approved

China Robust DC  Connector Adapter IP67 Waterproof 4000W Power CE Approved supplier
Robust DC  Connector Adapter IP67 Waterproof 4000W Power CE Approved supplier Robust DC  Connector Adapter IP67 Waterproof 4000W Power CE Approved supplier

Large Image :  Robust DC Connector Adapter IP67 Waterproof 4000W Power CE Approved

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV005 1500V

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pairs per day
Contact Now
Detailed Product Description
Product Name: Connector Adapter Material: PPO
Application: Solar Power System Rated Current:: 30A
Contact Resistance: ≤5mΩ Type: Adapter



IP67 Waterproof CE approved Connector Adapter 1500V For Solar PV module



Connector Description:



The new 1500v solar connector is a robust DC connector triple-certified to EN50521 1500V (Class A), and JET 1500V specifications, making it available for usage in all major global PV markets. The new 1500v solar connector is an evolution of well-known H4 connector and is globally certified to mate with the H4. new 1500v solar connector uses ours low resistance contact technology giving it the ability to accept wire gauges from 14AWG/2.5mm² to 8 AWG/10mm², and an IP67 rating.



voltage rating ≤DC 1500V
current rating ≤30A(3.5-6mm2)
pollution degree CAT III/2
rated power 4000W
waterproof level IP67
shell material resistance material,PP0
connecting system cromp connection
contact resistance of plug and connectors 1MΩ
testing voltage DC 6000V(50Hz,1min)
contact material copper, Ag plated
flame class UL94-VO
safety class II
suitable cable OD4.5-8.5(2.5-6.0mm2)
insertion force/withdrawal force ≤50N/≥50N
operation temperature -40ºC~+125ºC
inner material copper tin plating
certificate CE, RoHS,CCC


Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:



• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

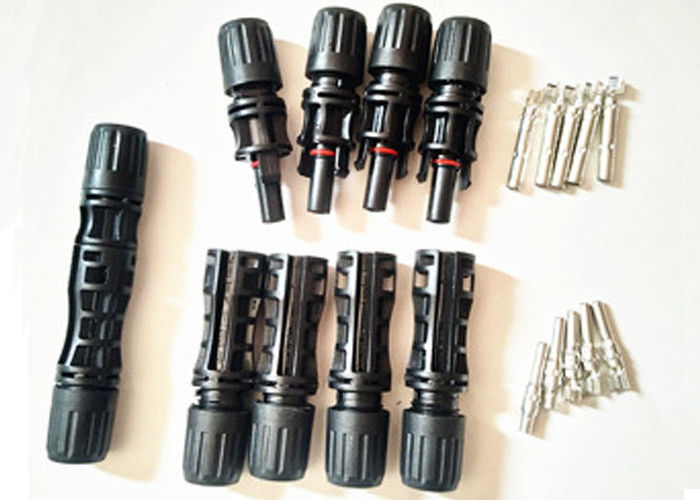

Picture of  solar connector



Robust DC  Connector Adapter IP67 Waterproof 4000W Power CE Approved
