63kg/Km Weight Solar PV Cable Power Station DC Solar Cable For Indoor / Outdoor
63kg/Km Weight for Indoor / Outdoor ISO9001 / TUV Power Station DC Solar Cable
Flexible cables suitable for mobile and fixed installation; Suitable for connection between photovoltaic panels, and photovoltaic panels to the AC inverter; Suitable for indoor and outdoor use.
The materials used in the construction of these cables exceed the thermal endurance test specified in the standard EN 60216 for +120 ºC (temperature index). Compliance with this test provides that, with proper installation, operation and maintenance, the estimated life of the cable is 30 years at 90 °C.
| Type |
Cross Section |
Strand Design |
Conductor Diameter |
Conductor Resistance |
Outer Diameter |
Rated Voltage |
Rated Current |
| H1Z2Z2-K 1x2.5mm2 |
2.5mm2 |
36x φ0.285mm |
2.0mm |
8.21 Ω/km |
5.0mm |
1500VDC |
50A |
| H1Z2Z2-K 1x4mm2 |
4mm2 |
56x φ0.285mm |
2.6mm |
5.09 Ω/km |
5.5mm |
1500VDC |
70A |
| H1Z2Z2-K 1x6mm2 |
6mm2 |
78x φ0.285mm |
3.3mm |
3.52 Ω/km |
6.1mm |
1500VDC |
95A |
| H1Z2Z2-K 1x10mm2 |
10mm2 |
80x φ0.4mm |
4.4mm |
1.95 Ω/km |
7.2mm |
1500VDC |
98A |
| H1Z2Z2-K 1x16mm2 |
16mm2 |
120x φ0.4mm |
5.2mm |
1.24 Ω/km |
9.2mm |
1500VDC |
132A |
Product description
PV Photovoltaic Cable DC Solar Power CableTechnical Character:
Working voltage:AC: 600/1000V DC: 900/1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 o C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120o C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km
Technical Data
Conductor : Stranded tinned copper
Refer to IEC 60228 class 5
Inner Insulation: XLPE
Outer Jacket: XLPE
Colour: Black and Red
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
| Name |
PV Cable |
| The product description |
Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features |
Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. |
| Cable protection level Ⅱ level. |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. |
| It conforms to ROHS, and the insulation resistance is small after immersion. |
| Electrical |
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. |
| Cable structure |
Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F |
| 25,16 and 10, 6,4,2.5 mm2 PV wire |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. |
| Sheath: low smoke and halogen free material thickness > 0.5mm. |
| Detailed parameters |
Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)
Packing and Shipping:

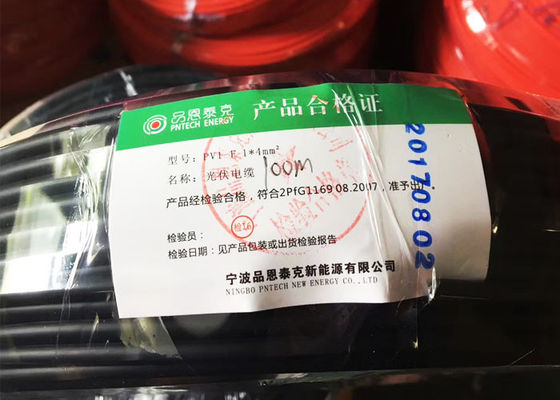

Product Packaging:
The Solar PV Cable is carefully packaged in a durable cardboard box to ensure safe transportation. Each cable is coiled neatly and secured with cable ties to prevent tangling during shipping. The box is labeled with product information and handling instructions for easy identification.
Shipping:
Orders of the Solar PV Cable are shipped using a reliable courier service to ensure timely delivery. The cables are packed securely in the box to prevent damage during transit. Customers will receive a tracking number to monitor the status of their shipment and can expect their order to arrive within the specified timeframe.
FAQ:
1. What is the model number of the Solar PV Cable?
The model number of the Solar PV Cable is H1Z2Z2-K.
2. Where is the Solar PV Cable manufactured?
The Solar PV Cable is manufactured in China.
3. What certifications does the Solar PV Cable have?
The Solar PV Cable is certified by TUV, CE, ISO9001, CQC, CPR, and BCA.
4. What is the minimum order quantity for the Solar PV Cable?
The minimum order quantity for the Solar PV Cable is 500 units.
5. How is the Solar PV Cable packaged?
The Solar PV Cable is packaged in rolls of 100m each.
