Power Station DC XLPE 4mm Solar Panel Extension Cable

China Power Station DC XLPE 4mm Solar Panel Extension Cable supplier
Power Station DC XLPE 4mm Solar Panel Extension Cable supplier Power Station DC XLPE 4mm Solar Panel Extension Cable supplier

Large Image :  Power Station DC XLPE 4mm Solar Panel Extension Cable

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: DC-DC

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 100m / roll 250m / roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: 4mm2 DC Solar Cable With Connector Packing: PP Bag
Insulation Material: XLPE Rated Voltage: AC Uo/U0.6~1.0KV , DC1.5KV
Color: Black / Red Temperature Range: -40℃~+90℃
High Light:

4mm Solar Panel Extension Cable

,

XLPE Solar Panel Extension Cable



4mm Solar Panel Extension Extended Cable Wire Cord with Connector TUV CE



Description



1. For outdoor use and it is moisture,UV and corrosion resistant.

2. Male and Female Hard plastic connector at the end.

3. Black + Red Solar Panel Extension Cable Wire.

4. Extends and locks built-in cables.

5. Voltage: DC 1000V & AC 1800V.

6. Application: used for solar power board, solar energy power station.

7. Range of cross section: 2.5mm2~10mm2.



Construction



1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C

2. Description:

(1) Conductor: Tinned annealed copper

(2) Insulation:90°C XLPE , black

(3) Jacket:90°C XLPE , black or red

3. Marking:TüV 2 PfG 1169 PV1-F 1×4mm2



Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
H1Z2Z2-K 1x4mm2 4mm2 56x φ0.3mm 2.6mm 5.09 Ω/km 5.9mm 1500VDC 55A



Applications


Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70


Options:


Colored phase ID stripes available on request
Multi-plexing available on request


Features:


Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C



Product Name TUV Standard Solar Cable
Model NO. H1Z2Z2-K 1x 4mm2
Voltage High Voltage Cable
Insulation Material XLPE
Material Shape Round Wire
Certification ROSH, CE, TUV
Standards TUV EN50618
Cores 1 Core
Transport Package Iron-Wooden Drum, Iron Drum
Application Construction, Underground, Industrial, Power Station
Sheath Material XLPE
Wire Core Material Tinned Copper
Cross Section 4mm2



Rate voltage: 1000v
Rated current: 22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage: 6KV(50Hz)
Protect degree: IP67/IP2X
Insulation material: PC/PA/PPO/TPE
Contact material: Silver plated copper
Operating temperature: -40°C~+90°C
Safe class: 2
Flame class: UL94-V0
Contact resistance of plug connectors: ≤5mΩ
Insertion force: ≤50N
Withdraw force: ≥50N
Suitable cable: 2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system: Snap in
Product No. DC-DC
Rated voltage TUV 1000V DC
Rated current 30A
Suitable cable cross sections 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal size Φ4.0mm
Test voltage DC 8KV 1min
Pollution degree 2
Protection class Class II
Terminal Material Tinned copper
Contact resistance ≤ 5mΩ
Insulation Materials PPC
IP rating IP67(IEC 60529)
Pull-out force ≥ 50N
Insertion Force ≤ 50N
Test temperature -40ºC~ +85ºC
Flame Class UL94V - 0


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

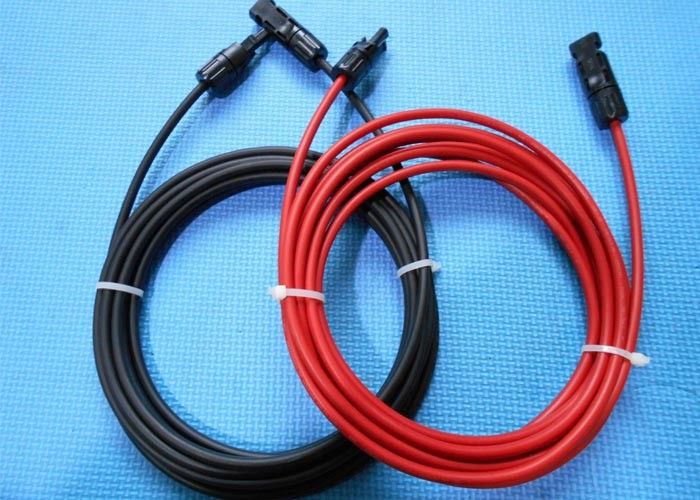

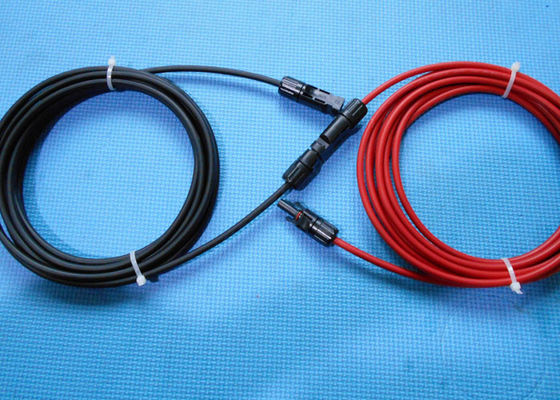

Pictures of 4mm2 DC solar Cable with connector

Power Station DC XLPE 4mm Solar Panel Extension Cable 0
