Flexible Connection Solar Cable 3m 4mm2 Extension 30A Rated Current

Flexible Connection  Solar Cable 3m 4mm2 Extension 30A Rated Current
Flexible Connection  Solar Cable 3m 4mm2 Extension 30A Rated Current

Large Image :  Flexible Connection Solar Cable 3m 4mm2 Extension 30A Rated Current

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: DC-DC

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Detailed Product Description
Product Name: 4mm2 Solar Cable Extension Length: 3m
Rated Voltage: 1000VDC Rated Current:: 30A
Contact Resistance: ≤5mΩ Color: Black/ Red
High Light:

solar panel power cable

,

solar extension cable



Flexible Solar Panel Connection 3m 4mm2 Solar Cable Extension with Connector



Solar cable Description



Cable description:

56/.285 (4.0mm2) Tinned Annealed Copper

XLPE Insulated. 0.6/1KV core.

630/1050Vdc SOLAR Cable oversheathed with XLPE

Oxygen Free Copper. RoHS Compliant XLPE


Condoctor:

56 Strands of 0.285mm nom. Tinned Annealed Copper , drawn

from Class 110A Copper to AS1574

Max D.C. resistance at 20C : 5.1 ohms / km

INSULATION

Black XLPE type

Nominal Diameter : 4.6mm

Nominal Wall Thickness : 1.0mm

Minimum at any point : 0.8mm

OVERSHEATH

Black XLPE type

Nominal Diameter : 5.9mm

Nominal Wall Thickness : 0.9mm

Talc Barrier Between Insulation And Oversheath




Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.285 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.285 3.3 3.39 7.1 1000/1800 70 95


Connector



1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.

3. Popular figure suit most of field installation.

4. Quickly to connector.

5. Water proof and prevent dust.

6. Long life.



Rate voltage: 1000v
Rated current: 22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage: 6KV(50Hz)
Protect degree: IP67/IP2X
Insulation material: PC/PA/PPO/TPE
Contact material: Silver plated copper
Operating temperature: -40°C~+90°C
Safe class: 2
Flame class: UL94-V0
Contact resistance of plug connectors: ≤5mΩ
Insertion force: ≤50N
Withdraw force: ≥50N
Suitable cable: 2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system: Snap in
Product No. DC-DC
Rated voltage TUV 1000V DC
Rated current 30A
Suitable cable cross sections 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal size Φ4.0mm
Test voltage DC 8KV 1min
Pollution degree 2
Protection class Class II
Terminal Material Tinned copper
Contact resistance ≤ 5mΩ
Insulation Materials PPC
IP rating IP67(IEC 60529)
Pull-out force ≥ 50N
Insertion Force ≤ 50N
Test temperature -40ºC~ +85ºC
Flame Class UL94V - 0


Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:



• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.


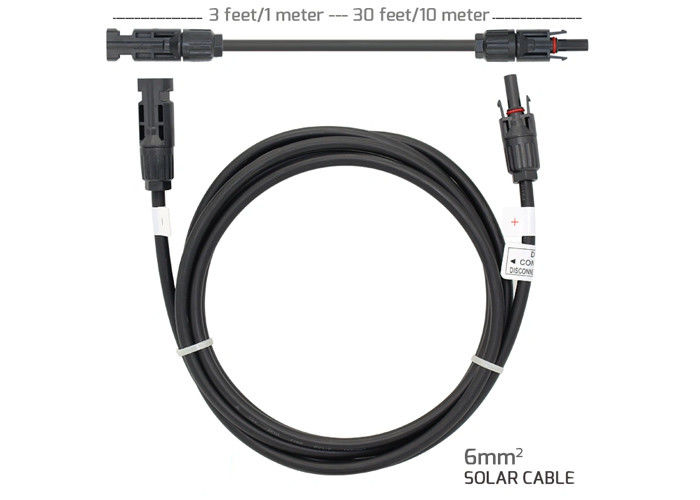

Picture of Solar Extension Cable 4mm2

Flexible Connection  Solar Cable 3m 4mm2 Extension 30A Rated Current 0

Contact Details
Ningbo Pntech New Energy Co., Ltd.

Contact Person: admin
