High Resistant TUV Certified DC Solar Panel Wire 4mm PV Solar Extension Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: DC-00

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

1000V Solar Panel Cable

,

30A Solar Panel Cable

Product Name:
4mm PV Solar Extension Cable
Flame Class:
UL94-VO
Rated Voltage:
1000VDC
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Packing:
One Pc Per Bag
Keywords:
PV Solar Extension Cable
Product Name:
4mm PV Solar Extension Cable
Flame Class:
UL94-VO
Rated Voltage:
1000VDC
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Packing:
One Pc Per Bag
Keywords:
PV Solar Extension Cable
Description
High Resistant TUV Certified DC Solar Panel Wire 4mm PV Solar Extension Cable



High Resistant TUV Certified DC Solar Panel Wire 4mm PV Solar Extension Cable



Cable description:



The XLPE cables are conventionally manufactured by Chemical Cross Linking Process and are suitable for max operating temperature

of 90 C Apar has successfully developed Electron Beam Cross Linked XLPE (120 C)Insulated Power Control Cables Suitable for

Insulation rating 120 C(max continuous operating temperature), These cables are provided with 120 C rated inner &outer XLPE Sheath

to support cable usage at higher operating temperature.



Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95


Connector



1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.

3. Popular figure suit most of field installation.

4. Quickly to connector.

5. Water proof and prevent dust.

6. Long life.



Rate voltage: 1000v
Rated current: 22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage: 6KV(50Hz)
Protect degree: IP67/IP2X
Insulation material: PC/PA/PPO/TPE
Contact material: Silver plated copper
Operating temperature: -40°C~+90°C
Safe class: 2
Flame class: UL94-V0
Contact resistance of plug connectors: ≤5mΩ
Insertion force: ≤50N
Withdraw force: ≥50N
Suitable cable: 2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system: Snap in
Product No. DC-DC
Rated voltage TUV 1000V DC
Rated current 30A
Suitable cable cross sections 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal size Φ4.0mm
Test voltage DC 8KV 1min
Pollution degree 2
Protection class Class II
Terminal Material Tinned copper
Contact resistance ≤ 5mΩ
Insulation Materials PPC
IP rating IP67(IEC 60529)
Pull-out force ≥ 50N
Insertion Force ≤ 50N
Test temperature -40ºC~ +85ºC
Flame Class UL94V - 0


Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:



• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:



1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

Picture of Solar Cable

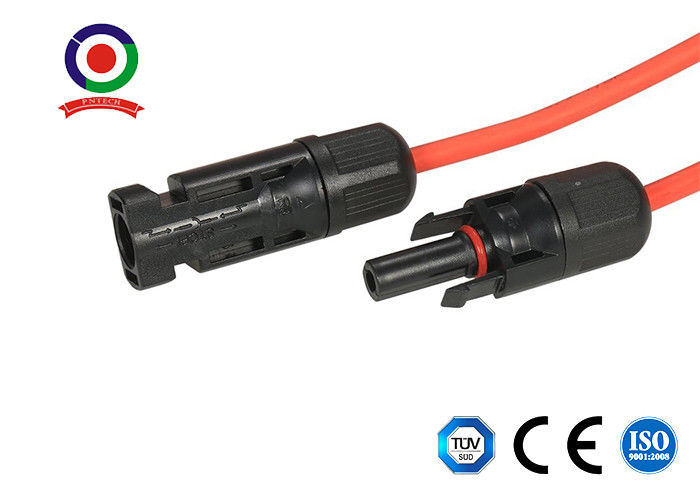

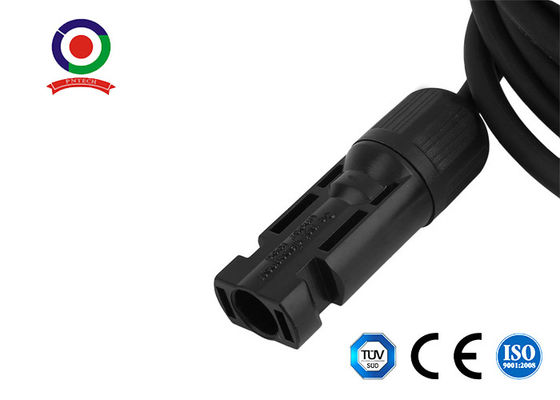

High Resistant TUV Certified DC Solar Panel Wire 4mm PV Solar Extension Cable 0
