Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: DC-DC
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Product Name: |
Solar Extension Cable |
Material: |
PPO |
Rated Voltage: |
1000VDC |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Color: |
Black |
Product Name: |
Solar Extension Cable |
Material: |
PPO |
Rated Voltage: |
1000VDC |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Color: |
Black |
Flame Free solar extension cable 4mm2 High Resistance TUV approved 1000VDC
Solar panel extension cable Description
Cable description:
1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description: (1)Conductor: Tinned annealed copper
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red
3.Marking:TÜV 2 PfG 1169 PV1-F 1×4mm2
4.Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .
For permanent installations.
5.General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather;
with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
| Type | Cross | Strand | Conductor | Conductor | Outer | Rated | Rated | Weight |
| section | design | diameter | resistance | diameter | voltage | current | ||
| mm² | No.x ø (mm) | mm | Ω /km | mm | VAC/DC | A | Kg/km | |
| PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.5 | 4.8 | 1000/1800 | 30 | 35 |
| PV-1*2.5 mm² | 2.5 | 50x ø 0.25 | 2.0 | 8.21 | 5.3 | 1000/1800 | 41 | 50 |
| PV-1*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 5.09 | 6.1 | 1000/1800 | 55 | 70 |
| PV-1*6.0 mm² | 6.0 | 84x ø 0.3 | 3.3 | 3.39 | 7.1 | 1000/1800 | 70 | 95 |
Connector
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.
| Rate voltage: | 1000v |
| Rated current: | 22A(2.5mm2) , 30A(4mm2,6mm2) |
| Test voltage: | 6KV(50Hz) |
| Protect degree: | IP67/IP2X |
| Insulation material: | PC/PA/PPO/TPE |
| Contact material: | Silver plated copper |
| Operating temperature: | -40°C~+90°C |
| Safe class: | 2 |
| Flame class: | UL94-V0 |
| Contact resistance of plug connectors: | ≤5mΩ |
| Insertion force: | ≤50N |
| Withdraw force: | ≥50N |
| Suitable cable: | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
| Locking system: | Snap in |
| Product No. | DC-DC |
| Rated voltage | TUV 1000V DC |
| Rated current | 30A |
| Suitable cable cross sections | 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG |
| Terminal size | Φ4.0mm |
| Test voltage | DC 8KV 1min |
| Pollution degree | 2 |
| Protection class | Class II |
| Terminal Material | Tinned copper |
| Contact resistance | ≤ 5mΩ |
| Insulation Materials | PPO |
| IP rating | IP67(IEC 60529) |
| Pull-out force | ≥ 50N |
| Insertion Force | ≤ 50N |
| Test temperature | -40ºC~ +85ºC |
| Flame Class | UL94V - 0 |
Assembly Instructions
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

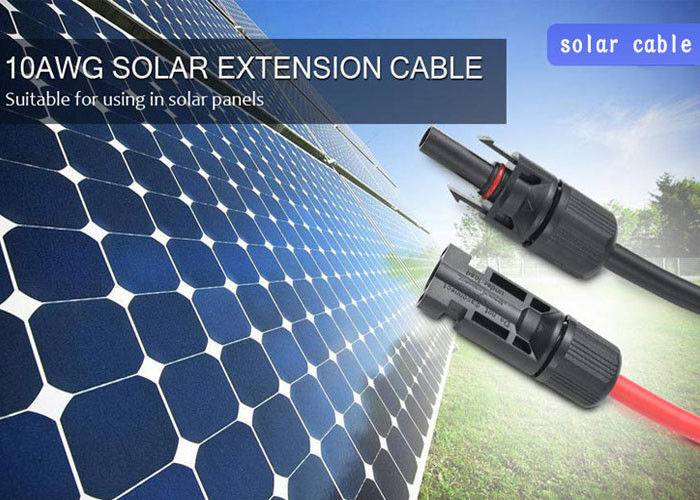

Picture of solar extension cable 4mm2
