UV Resistant DC 1000V PV1-F 1x6mm2 Extension Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Solar Panel Extension Cable||Flame Class||UL94-VO|
|Rated Voltage||1000VDC||Rated Current||30A|
1x6mm2 Extension Cable,
UV Resistant Extension Cable
DC 1000V PV1-F 1x6mm2 Solar Cable UV Resistant solar panel extension cable
Solar cable Description
Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions For permanent installations.
General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat,cold,oil,abrasion,ozone,UV and weather; with improved reaction in case of fire .
|mm²||No.x ø (mm)||mm||Ω /km||mm||VAC/DC||A||Kg/km|
|PV-1*1.5 mm²||1.5||30x ø 0.25||1.6||13.5||4.8||1000/1800||30||35|
|PV-1*2.5 mm²||2.5||50x ø 0.25||2.0||8.21||5.3||1000/1800||41||50|
|PV-1*4.0 mm²||4.0||56x ø 0.3||2.6||5.09||6.1||1000/1800||55||70|
|PV-1*6.0 mm²||6.0||84x ø 0.3||3.3||3.39||7.1||1000/1800||70||95|
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.
|Rated current:||22A(2.5mm2) , 30A(4mm2,6mm2)|
|Contact material:||Silver plated copper|
|Contact resistance of plug connectors:||≤5mΩ|
|Locking system:||Snap in|
|Rated voltage||TUV 1000V DC|
|Suitable cable cross sections||2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG|
|Test voltage||DC 8KV 1min|
|Protection class||Class II|
|Terminal Material||Tinned copper|
|Contact resistance||≤ 5mΩ|
|IP rating||IP67(IEC 60529)|
|Pull-out force||≥ 50N|
|Insertion Force||≤ 50N|
|Test temperature||-40ºC~ +85ºC|
|Flame Class||UL94V - 0|
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

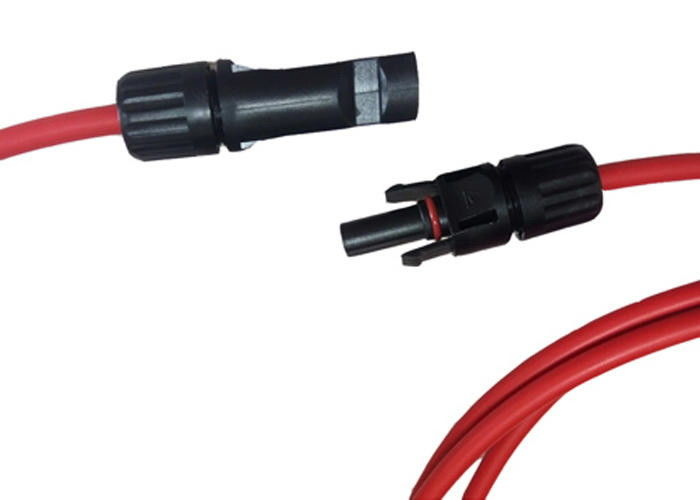

Picture of Solar Cable
