Solar Panel PV Connector IP67 Waterproof High Heat Resistance 30A 1500V DC

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number PV004
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton
Delivery Time 3-10days
Payment Terms L/C, T/T
Supply Ability 5000pairs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PV Connectors Material PPO
Gender Female And Male Rated Voltage 1500VDC
Protection Degree IP67 Color Black
Application Solar Power System Contact Material Copper/tin Plated
High Light

solar pv connectors

,

plug socket connector

Leave a Message
Product Description



1500V DC TUV Approved Solar PV Connector IP67 30A for solar panel



Description:



1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
8. Rated Voltage: 1500V
9. Rated Current: 30A



Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PPO material, easy to connector with each other. It is important and indispensable components for photoelectric system.



Type: connector PV004
Electrical Features:
Rated Current 25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage 1500V DC(TUV),600V(UL)
Contact Resistance ≤0.3mΩ
Protection Class Class II
Mechanical Features:
Temperature Range -40 oC~+90oC
Protection Degree IP2X,unmated;IP67,mated
Wire Size Range 2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force 200 Newton
Material Features:
Insulation Material PPO
Contact Material Copper,Tin plated
Flame Class UL94-V0 or UL94-5VA



Advantage:



• Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly

• High mechanical endurance

• High current and voltage carrying:30A,1500VDC

• Low transition resistance

• Innovative sealed,waterproof,dust resistance design:IP68

• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

• Approved by TUV

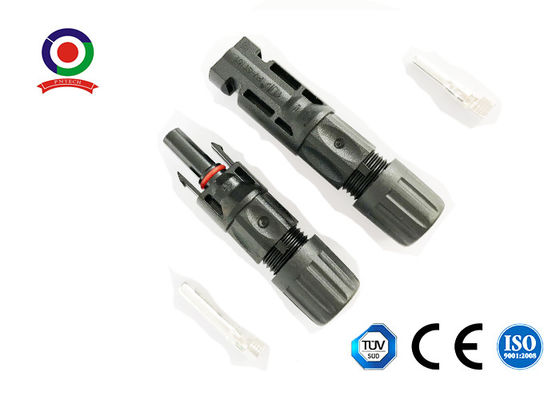

Picture of connector:



Solar Panel  PV Connector IP67 Waterproof High Heat Resistance 30A 1500V DC 0
