DC 1000V Inline PPO Black Solar Fuse Connector

China DC 1000V Inline PPO Black Solar Fuse Connector supplier
DC 1000V Inline PPO Black Solar Fuse Connector supplier DC 1000V Inline PPO Black Solar Fuse Connector supplier

Large Image :  DC 1000V Inline PPO Black Solar Fuse Connector

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: CE/ISO9001
Model Number: PV004-F

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: PP bag
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs per day
Contact Now
Detailed Product Description
Product Name: Connector With Fuse Material: PPO
Connector: Female And Male Rated Voltage: DC1000V
Protection Degree: IP67 Flame Class:: UL94-V0
Rated Current: 10-20A Color: Black
High Light:

PPO Solar Fuse Connector


Inline Solar Fuse Holder

PPO Black CE solar photovoltaic connector with inline fuse holder 5A to 30A
Our solar Fuse Connector is a high powered solar connector encased in high quality PPO material with tin plated copper ,This photolotaic solar Fuse connector is suitable used for protect electrical equipment,,used for fuse with specification of 1A 2A,3A,4A,5A,8A,10A,12A.15A 20A,25A and 30A

Product Name:
Connector With fuse
Housing Material:
Contact Material:
Copper,sliver plated
Pin Dimention:
4.0 mm
Contact Resistance:
Less than 0.5 m ohm
Application Class:
Class A
Rated Voltage:
TUV1500V DC/UL 600V DC
Rated Current:
Test Voltage:
6KV (5Hz, 1Min)
Flame Class:
Plug Force:
Less than 50N
Withdrawal Force:
More than 50N
Rated Temperature:
Upper Limited Temperture:
Pollution Degree:
Protection Degree:
Class II
Service Life:
20 years
Suitable Cable Cross Sections:
2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

*  It can be used in harsh environment
*  Double seal rings for better waterproof effect
*  Created seal, design of dust proof
*  Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
*  Lower contact resistance
*  With excellent aging resistance and UV endurance
*  Created seal, design of dust proof
*  Load capability with big current and high voltage
*  Strong pulling force capability
*  Resistance of extra high & low temperature and fireproof
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

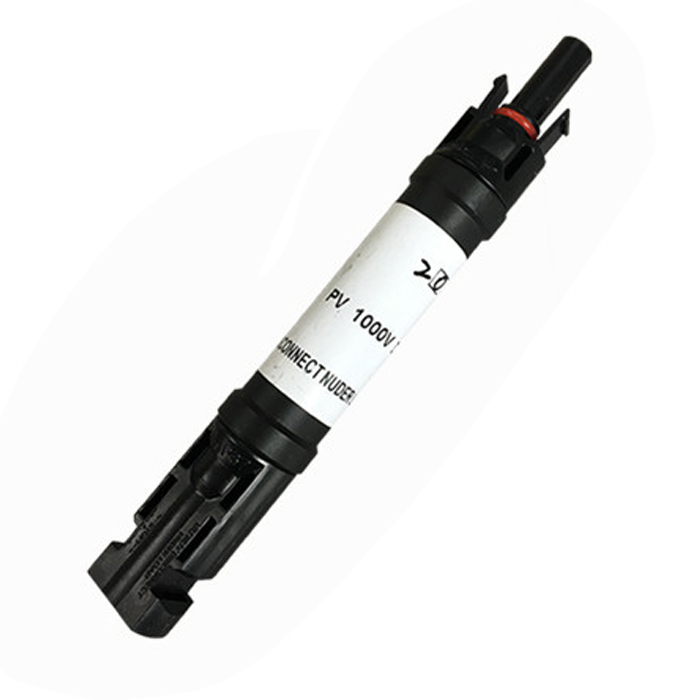

Picture of fuse connector
DC 1000V Inline PPO Black Solar Fuse Connector 0DC 1000V Inline PPO Black Solar Fuse Connector 1
