PPO Black Solar Fuse Connector 10-20A DC1000V IP67

Name: PPO Black Solar Fuse Connector 10-20A DC1000V IP67
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-F
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    PPO Solar Fuse Connector, Inline Solar Fuse Holder


Product Name:	Connector With Fuse	Material:	PPO
Connector:	Female And Male	Rated Voltage:	DC1000V
Protection Degree:	IP67	Flame Class::	UL94-V0
Rated Current:	10-20A	Color:	Black

Product Name:	Connector With Fuse
Material:	PPO
Connector:	Female And Male
Rated Voltage:	DC1000V
Protection Degree:	IP67
Flame Class::	UL94-V0
Rated Current:	10-20A
Color:	Black

Description

PPO Black Solar Fuse Connector 10-20A DC1000V IP67

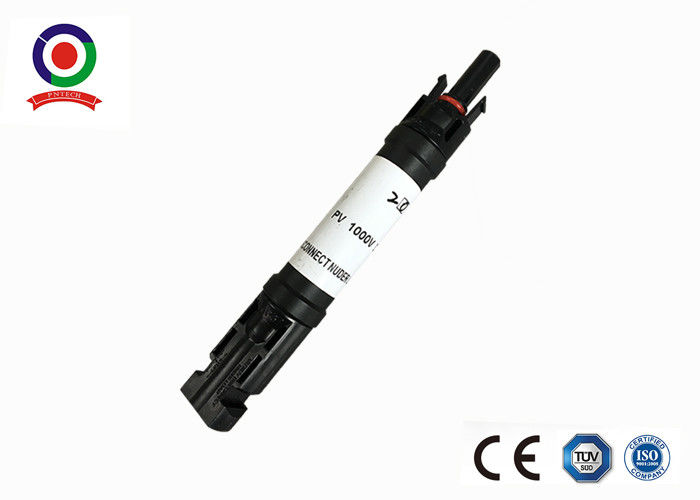

DC 1000V Inline PPO Black Solar Fuse Connector

PPO Black CE solar photovoltaic connector with inline fuse holder 5A to 30A. Our solar Fuse Connector is a high powered solar connector encased in high quality PPO material with tin plated copper. This photovoltaic solar Fuse connector is suitable for protecting electrical equipment, used for fuses with specifications of 1A, 2A, 3A, 4A, 5A, 8A, 10A, 12A, 15A, 20A, 25A and 30A.

Product Specifications

Product Name:	Connector With fuse
Housing Material:	PPO
Contact Material:	Copper, silver plated
Pin Dimension:	4.0 mm
Contact Resistance:	Less than 0.5 m ohm
Application Class:	Class A
Rated Voltage:	TUV1500V DC/UL 600V DC
Rated Current:	10~20A
Test Voltage:	6KV (5Hz, 1Min)
Flame Class:	UL94-V0
Plug Force:	Less than 50N
Withdrawal Force:	More than 50N
Rated Temperature:	-40°C~+85°C
Upper Limited Temperature:	100°C
Waterproof:	IP67/IP68
Pollution Degree:	2
Protection Degree:	Class II
Standard:	TUV
Service Life:	20 years
Suitable Cable Cross Sections:	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Key Advantages

Designed for use in harsh environments
Double seal rings for superior waterproofing
Sealed design for dust protection
Quick and simple assembly without special tools
Low contact resistance
Excellent aging resistance and UV endurance
High current and voltage load capability
Strong pulling force capability
Resistant to extreme temperatures and fireproof

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent requests, please call us with complete specifications for immediate pricing.

2. How long about the delivery?

Usually within 3-4 working days after payment, depending on order quantity.

3. What's your payment terms?

We accept T/T (bank transfer) and L/C.

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM services are available.
