PV Solar Branch Connector Solar Energy Adapter 30A Rated Current UV Endurance

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-T5

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

solar panel branch connector

,

pv panel connectors

Product Name:
Y Connector For Solar Panel
Safety Class:
II
Protection Degree:
IP67
Rated Current::
30A
Color:
Black
Packing:
PP Bag
Product Name:
Y Connector For Solar Panel
Safety Class:
II
Protection Degree:
IP67
Rated Current::
30A
Color:
Black
Packing:
PP Bag
Description
PV Solar Branch Connector Solar Energy Adapter 30A Rated Current UV Endurance



PV Solar Energy Adapter T Branch Mff Fmm y connector for solar panel



Description:



With excellent aging resistance and UV endurance, it can be used in harsh environment. The cable connection adopts means of rivet and lock. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.



1.Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2. highly robustness,UV-Resistance,
3. Connector adopts touch and insertion of reed with inner-knob type.
4. Auto-lock equipment of male and female points enable connection more easy and reliable.
5. Popular figure suit most of field installation
6. Simple on-site processing
7. Accommodates PV cable with deferent insulation diameters
8. High current carrying capacity



Main parameter
Product Name branch solar connector
voltage rating ≤DC 1000V
current rating ≤30A(3.5-6mm2)
pollution degree CAT III/2
rated power 4000W
waterproof level IP67
shell material resistance material,PP0
connecting system cromp connection
contact resistance of plug and connectors 1MΩ
testing voltage DC 6000V(50Hz,1min)
contact material copper, Ag plated
flame class UL94-VO
safety class II
suitable cable OD4.5-8.5(2.5-6.0mm2)
insertion force/withdrawal force ≤50N/≥50N
operation temperature -40ºC~+125ºC
inner material copper tin plating
certificate CE, RoHS,CCC
Contact resistence 0.4mΩ
Pin dimensions Φ4.0mm
Connecting System Crimp connection
Contact material: Copper,Tin Plated


Advantage:



1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition



Assembly Instructions



1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67



FAQ:



1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

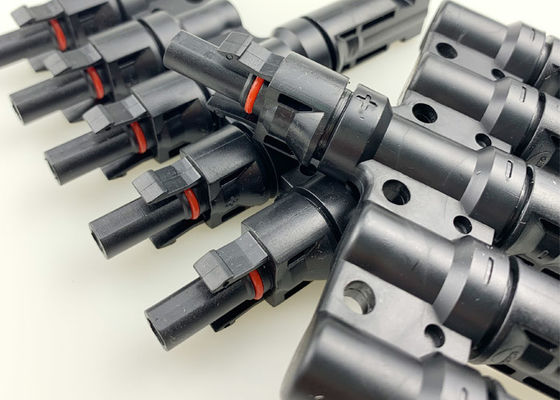

Picture of  Y connector for solar panel



PV Solar Branch Connector Solar Energy Adapter 30A Rated Current UV Endurance 0
