Black / Red 4mm Solar Cable Pv1 F For Photovoltaic System XLPE Jacket
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||4mm Solar Cable||Conductor||56/0.285|
|Color||Black Or Red||Application||Power Station,Solar Power System,Construction|
solar dc cable,
solar photovoltaic cable
Hard-wearing Electrical Cable Wire 4mm pv1f Solar Cable For Photovoltaic system
1.Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
(1)Conductor: Tinned annealed copper
(2)Insulation:90°C XLPE , black
(3)Jacket:90°C XLPE , black or red
3.Marking:TüV 2 PfG 1169 PV1-F 1×2.5mm2
4.Application: Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.
5.General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
|Size||Cross Section||Conductor Structure||Outer Diameter||Max. DC||Rated||Rated|
|Resistance at 20℃||Voltage||Current|
|1 x 2.5mm²||2.5mm²||49 x ∅0.285||5.2||8.06||1000/1500||30A|
|1 x 4.0mm²||4.0mm²||56 x ∅0.285||5.9||4.97||1000/1500||50A|
|1 x 6.0mm²||6.0mm²||84 x ∅0.285||6.5||3.52||1000/1500||70A|
|1 x 10.0mm²||10.0mm²||80 x ∅0.40||8.5||2.12||1000/1500||95A|
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
|The product description||Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.|
|Product features||Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.|
|Flame retardant, cutting resistance and penetration resistance.|
|Cable protection level Ⅱ level.|
|With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.|
|It conforms to ROHS, and the insulation resistance is small after immersion.|
|Electrical||1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km|
|2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm|
|3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.|
|Cable structure||Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F|
|25,16 and 10, 6,4,2.5 mm2 PV wire|
|Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.|
|Sheath: low smoke and halogen free material thickness > 0.5mm.|
|Detailed parameters||Ambient temperature: - 40 ℃ ~ + 90 ℃|
|The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)|
|Limited voltage: AC0.6/1kv dc1.8kv.|
(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

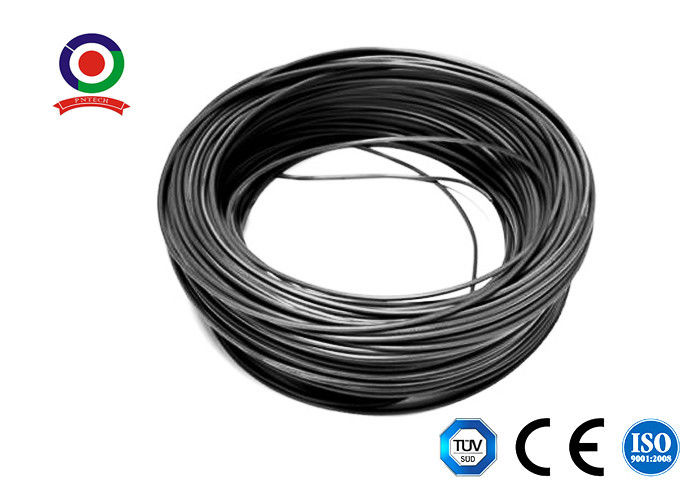

Picture of 4mm solar cable
