6mm2 Solar PV Cable Wire OD 6.5mm TUV Approved Weather - Resistant

China 6mm2 Solar PV Cable Wire OD 6.5mm TUV Approved Weather - Resistant supplier
6mm2 Solar PV Cable Wire OD 6.5mm TUV Approved Weather - Resistant supplier 6mm2 Solar PV Cable Wire OD 6.5mm TUV Approved Weather - Resistant supplier

Large Image :  6mm2 Solar PV Cable Wire OD 6.5mm TUV Approved Weather - Resistant

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: ISO9001/TUV/CE
Model Number: PV1-F 1x6mm2

Payment & Shipping Terms:

Minimum Order Quantity: 200m
Price: Negotiation
Packaging Details: 200m/roll, 200m per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: 6mm2 10AWG Solar PV Cable Resistance: ≤3.39(Ω/KM)
Color: Red Or Black Cable OD: 6.5mm
Packing: 200m/roll Temperature Range: -40℃~+90℃



6mm2 (10AWG) Solar Cable PV Cable Wire Copper Conductor XLPE Jacket TUV approved



Product description



1. Conductor: fine wire strands of tinned copper wires, according IEC60228, class 5

2. Insulation: halogen free PE, electron beam cross-linked

Colors: black

3. Outer jacket: halogen free and flame retardant PE, electron beam cross-linked resistance against water, UV resistant

Jacket color: black, red

4.Max, temperature at conductors: -40℃ up to +120℃

5.Temperature ranges: -40℃ up to +90℃ (min.25 years)

6.Nominal voltage U0/U: AC 1000V, DC 1500V

7.Mat. DC voltage: 1800V (conductor-conductor, non-earthed system, circuit not under load)

8.AC-test-voltage: 6.5KV

9.Minimum surface resistance of sheath: 109Ώ

10.Other tests: according EN 50618



Technical Data



Product Code Number Size(mm2) Conductor dia. N/mm Insulation dia.(mm) Nominal Jacket dia.(mm) Net Weight/1000 meter(kg)
PV1-F 1x1.5mm2 1.5 30/0.25 3.1 4.7 39
PV1-F 1x2.5mm2 2.5 49/0.25 3.6 5.3 48
PV1-F 1x4mm2 4 56/0.285 4.1 5.8 68
PV1-F 1x6mm2 6 84/0.285 4.7 6.4 88
PV1-F 1x10mm2 10 80/0.40 5.6 7.5 132
PV1-F 1x16mm2 16 126/0.40 7.55 10.2 205



Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

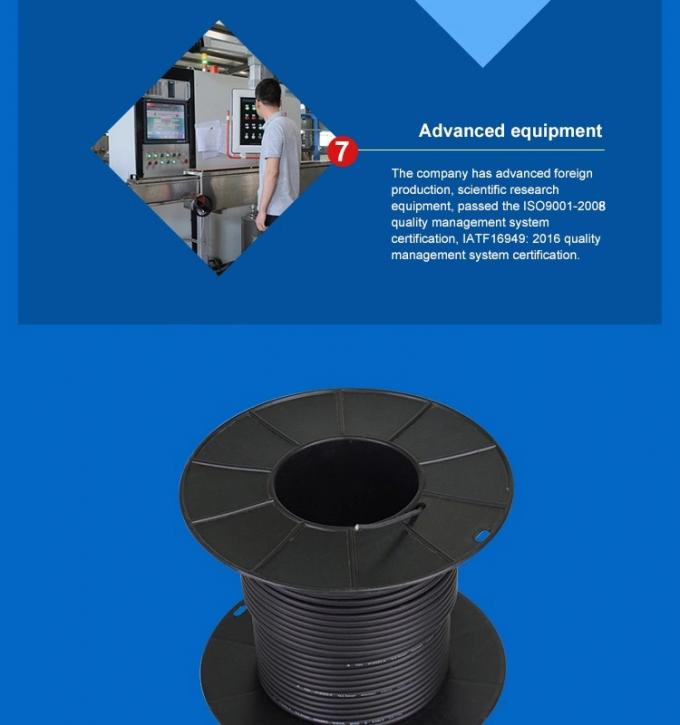

Picture of 6mm2 10AWG solar cable



6mm2 Solar PV Cable Wire OD 6.5mm TUV Approved Weather - Resistant

6mm2 Solar PV Cable Wire OD 6.5mm TUV Approved Weather - Resistant
