Photovoltaic Solar PV Cable H1z2z2-K 2.5mm 1000V AC TUV Double OD 5.2mm

China Photovoltaic Solar PV Cable H1z2z2-K 2.5mm 1000V AC TUV Double OD 5.2mm supplier
Photovoltaic Solar PV Cable H1z2z2-K 2.5mm 1000V AC TUV Double OD 5.2mm supplier Photovoltaic Solar PV Cable H1z2z2-K 2.5mm 1000V AC TUV Double OD 5.2mm supplier

Large Image :  Photovoltaic Solar PV Cable H1z2z2-K 2.5mm 1000V AC TUV Double OD 5.2mm

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: ISO9001/TUV/CE
Model Number: H1z2z2-K 1x2.5mm2

Payment & Shipping Terms:

Minimum Order Quantity: 250m
Price: Negotiation
Packaging Details: 250m/roll, 500m per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: 2.5mm PV Solar Cable Conductor Size: 50/0.25mm
Conductor: Tinned Copper Cable OD: 5.2mm
Packing: 250m/roll Temperature Range: -40℃~+90℃



H1z2z2-K 2.5mm Photovoltaic Solar PV Cable 1000V AC TUV Double XLPE Insulated



Product description



A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1.Fire-resistant performance:IEC60332-1.
2.Smoke emission:IEC61034;EN50268-2
3.Low fire load:DIN51900
4.Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502



Technical Data



Name: Single-core solar cable Conductor: Tinned copper wire
Executive standard: EN 50618 Insulation: Low smoke halogen-free irradiation cross-linked polyolefin
Model: H1Z2Z2-K Jacket: Low smoke halogen-free irradiation cross-linked polyolefin
Cable specifications:2.5/4/6/10/16/25/35mm² Rated Voltage:1500V
Ambient temperature:-40~90ºC Testing Voltage:6.5KV
Cable temperature:-40~120ºC Weather resistance: UV blocking
Short circuit temperature:250ºC Service life:>25 years
Bending radius:>4×Ø(Ø<8mm) >6×Ø(Ø≥8mm) Color: Black, Red



Application :



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 4mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

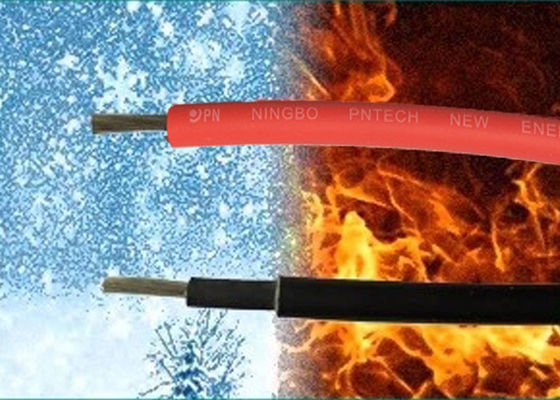

Picture of 2.5mm2 solar pv cable



Photovoltaic Solar PV Cable H1z2z2-K 2.5mm 1000V AC TUV Double OD 5.2mm
