H1z2z2-K 6mm Solar Dc Cable 1000VAC TUV Double Insulated For Photovoltaic System

China H1z2z2-K 6mm Solar Dc Cable 1000VAC TUV Double Insulated For Photovoltaic System supplier
H1z2z2-K 6mm Solar Dc Cable 1000VAC TUV Double Insulated For Photovoltaic System supplier H1z2z2-K 6mm Solar Dc Cable 1000VAC TUV Double Insulated For Photovoltaic System supplier

Large Image :  H1z2z2-K 6mm Solar Dc Cable 1000VAC TUV Double Insulated For Photovoltaic System

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: ISO9001/TUV/CE
Model Number: H1z2z2-K 1x6mm2

Payment & Shipping Terms:

Minimum Order Quantity: 200m
Price: Negotiation
Packaging Details: 200m/roll, 400m per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: 6mm PV Solar Cable Conductor Size: 84/0.285mm
Conductor: Tinned Copper Cable OD: 6.5mm
Packing: 200m/roll Temperature Range: -40℃~+90℃



H1z2z2-K 6mm PV Solar Cable 1000VAC TUV Double Insulated for Photovoltaic system



Product description



Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, 25 years lifetime.



Technical Data



Name: Single-core solar cable Conductor: Tinned copper wire
Executive standard: EN 50618 Insulation: Low smoke halogen-free irradiation cross-linked polyolefin
Model: H1Z2Z2-K Jacket: Low smoke halogen-free irradiation cross-linked polyolefin
Cable specifications:2.5/4/6/10/16/25/35mm² Rated Voltage:1500V
Ambient temperature:-40~90ºC Testing Voltage:6.5KV
Cable temperature:-40~120ºC Weather resistance: UV blocking
Short circuit temperature:250ºC Service life:>25 years
Bending radius:>4×Ø(Ø<8mm) >6×Ø(Ø≥8mm) Color: Black, Red



Application :



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 4mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

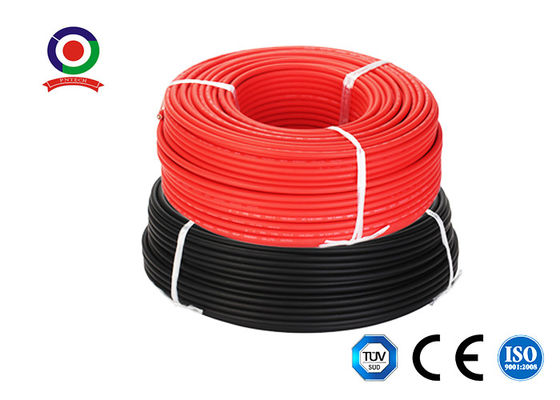

Picture of 6mm2 pv cable



H1z2z2-K 6mm Solar Dc Cable 1000VAC TUV Double Insulated For Photovoltaic System
