Product Name: |
Solar Cable 6mm2 |
Test Voltage: |
AC 6.5KV |
Conductor: |
Tinned Copper |
Cable OD: |
6.5mm |
Packing: |
200m/roll |
Temperature Range: |
-40℃～+90℃ |
Product Name: |
Solar Cable 6mm2 |
Test Voltage: |
AC 6.5KV |
Conductor: |
Tinned Copper |
Cable OD: |
6.5mm |
Packing: |
200m/roll |
Temperature Range: |
-40℃～+90℃ |
Tinned Copper Conductor XLPE Insulation Jacket Solar Cable 6mm2 TUV Approved
Product description
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
Technical Data
--Temperature Rating: -40°C to 90°C
--Conductor AWG: 12 to 2000 AWG
--Conductor Material: Soft Annealed tinned stranded copper, per ASTM B-33 and EN 60228
--Separator: Paper Tape
--Insulation Material: XLPE Halogen-free, thermoset, polyolefin specifically, designed for maximum, flexibility
--Jacket Material: Sunlight-Resistant PVC Black, low smoke, non-halogenated,flame retardant, oil, abrasion, chemical and sunlight resistant cross-linked compound meeting UL 44, UL 854
--Min. Bend Radius: 8x Diameter
| Product Code Number | Size(mm2) | Conductor dia. N/mm | Insulation dia.(mm) | Nominal Jacket dia.(mm) | Net Weight/1000 meter(kg) |
| PV1-F 1x1.5mm2 | 1.5 | 30/0.25 | 3.1 | 4.7 | 39 |
| PV1-F 1x2.5mm2 | 2.5 | 49/0.25 | 3.6 | 5.3 | 48 |
| PV1-F 1x4mm2 | 4 | 56/0.285 | 4.1 | 5.8 | 68 |
| PV1-F 1x6mm2 | 6 | 84/0.285 | 4.7 | 6.4 | 88 |
| PV1-F 1x10mm2 | 10 | 80/0.40 | 5.6 | 7.5 | 132 |
| PV1-F 1x16mm2 | 16 | 126/0.40 | 7.55 | 10.2 | 205 |
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F |
| 25,16 and 10, 6,4,2.5 mm2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 4mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

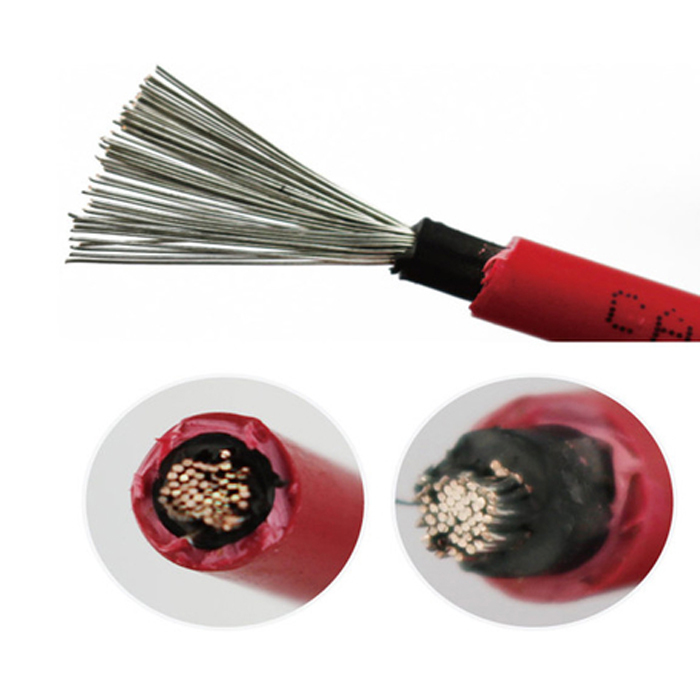

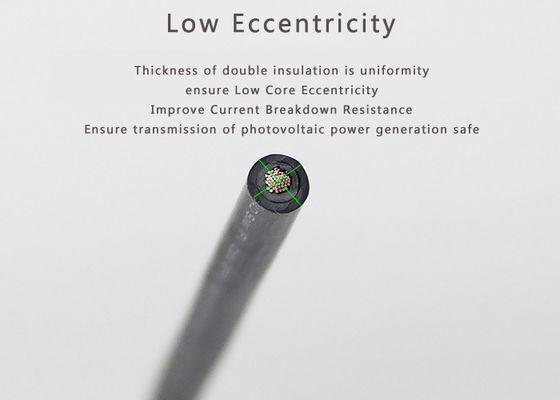

Picture of solar cable 6mm2
