DC 1000V 5A to 30A Solar Inline Fuse Holder connector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Solar Inline Fuse Holder Connector | Color | Black |
|---|---|---|---|
| Connector | Female And Male | Rated Voltage | DC1000V |
| Protection Degree | IP67 | Flame Class | UL94-V0 |
| High Light | inline fuse connector,fuse block connector |
||
Product Description
DC1000V 30A Solar Fuse Connector Inline Fuse Type connector for Solar Energy system
Our solar Fuse Connector is a high powered solar connector encased in high quality PPO material with tin plated copper ,This photolotaic solar Fuse connector is suitable used for protect electrical equipment,,used for fuse with specification of 1A 2A,3A,4A,5A,8A,10A,12A.15A 20A,25A and 30A.
|
Product Name:
|
Connector With fuse
|
|
Housing Material:
|
PPO
|
|
Contact Material:
|
Copper,sliver plated
|
|
Pin Dimention:
|
4.0 mm
|
|
Contact Resistance:
|
Less than 0.5 m ohm
|
|
Application Class:
|
Class A
|
|
Rated Voltage:
|
TUV1500V DC/UL 600V DC
|
|
Rated Current:
|
1~30A
|
|
Test Voltage:
|
6KV (5Hz, 1Min)
|
|
Flame Class:
|
UL94-V0
|
|
Plug Force:
|
Less than 50N
|
|
Withdrawal Force:
|
More than 50N
|
|
Rated Temperature:
|
-40°C~+85°C
|
|
Upper Limited Temperture:
|
100°C
|
|
Waterproof:
|
IP67/IP68
|
|
Pollution Degree:
|
2
|
|
Protection Degree:
|
Class II
|
|
Standard:
|
TUV
|
|
Service Life:
|
20 years
|
|
Suitable Cable Cross Sections:
|
2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire
|
Advantage
* It can be used in harsh environment
* Double seal rings for better waterproof effect
* Created seal, design of dust proof
* Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
* Lower contact resistance
* With excellent aging resistance and UV endurance
* Created seal, design of dust proof
* Load capability with big current and high voltage
* Strong pulling force capability
* Resistance of extra high & low temperature and fireproof

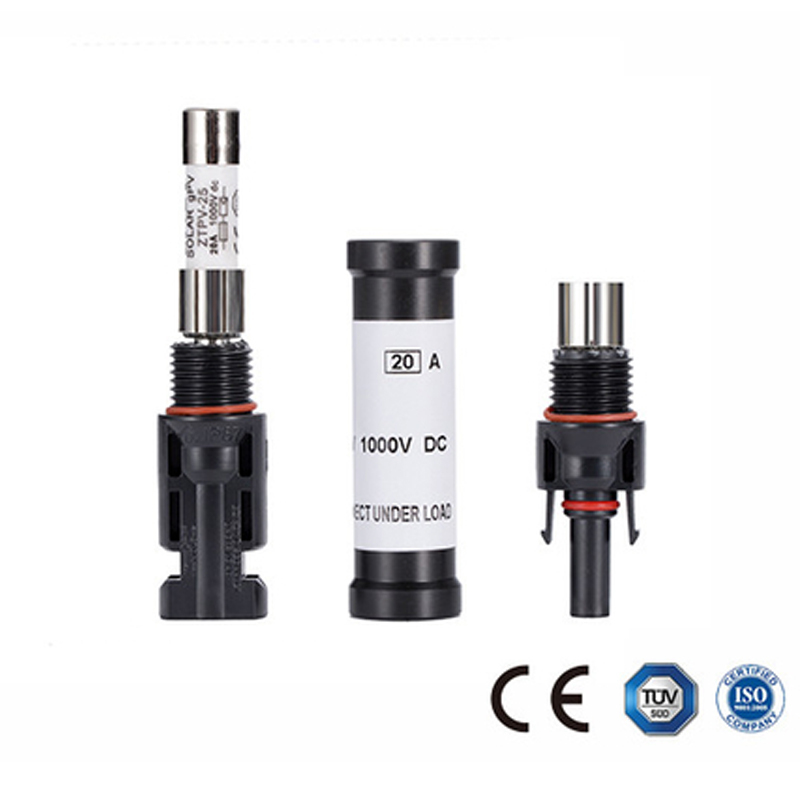

Picture of inline fuse solar connector
FAQ
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
