Sunlight Resistant Single Core Solar Cable 4mm2 XLPE With TUV Standard

Name: Sunlight Resistant Single Core Solar Cable 4mm2 XLPE With TUV Standard
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x4mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x4mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m / roll

Price: Negotiation

Packaging Details: 100m / roll 250m / roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    single core electrical cable, tuv solar cable


Product Name:	4mm2 DC XLPE Solar Cable	Current:	55A
Insulation Material:	XLPE	Structure:	56/0.3mm
Conductor Material:	Stranded Tinned Copper	Cable OD:	5.7mm
Resistance:	≤5.09（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red	Temperature Range:	-40℃～+90℃

Product Name:	4mm2 DC XLPE Solar Cable
Current:	55A
Insulation Material:	XLPE
Structure:	56/0.3mm
Conductor Material:	Stranded Tinned Copper
Cable OD:	5.7mm
Resistance:	≤5.09（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red
Temperature Range:	-40℃～+90℃

Description

Sunlight Resistant Single Core Solar Cable 4mm2 XLPE With TUV Standard

Sunlight Resistant Single Core Solar Cable 4mm² XLPE With TUV Standard

Product Description

Moistureproof single core sunlight resistant 4mm² cable with XLPE insulation and TUV certification.

Construction

Conductor: Tinned annealed copper
Insulation: 120°C XLPE, black
Jacket: 120°C XLPE, black or red

Technical Specifications

Nominal Voltage: U0/U=600/1000V AC, 1000/1800V DC
Test Voltage: 6500V, 50Hz, 5Min
Temperature Rating: -40°C to +90°C (ambient), max short circuit temperature: 280°C
Bending Radius: Fixed installation >4X, Occasionally moved >5X

Detailed Specifications

Type	Cross Section	Strand Design	Conductor Diameter	Conductor Resistance	Outer Diameter	Rated Voltage	Rated Current
H1Z2Z2-K 1x4mm²	4mm²	56x φ0.28mm	2.6mm	5.09 Ω/km	5.5mm	1500VDC	55A

Applications

Single conductor, sunlight-resistant photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70.

Options

Colored phase ID stripes available on request
Multi-plexing available on request

Features

Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance
Stable electrical properties over broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C

Product Specifications

Product Name	TUV Standard Solar Cable
Model NO.	H1Z2Z2-K 1x 4mm²
Voltage	High Voltage Cable
Insulation Material	XLPE
Material Shape	Round Wire
Certification	ROSH, CE, TUV
Standards	TUV EN50618
Cores	1 Core
Transport Package	Iron-Wooden Drum, Iron Drum
Application	Construction, Underground, Industrial, Power Station
Sheath Material	XLPE
Wire Core Material	Tinned Copper
Cross Section	4mm²

Note:

We also produce single core of 2.5mm², 6mm², 10mm² and 16mm², as well as dual cores. Please contact us directly for these options.

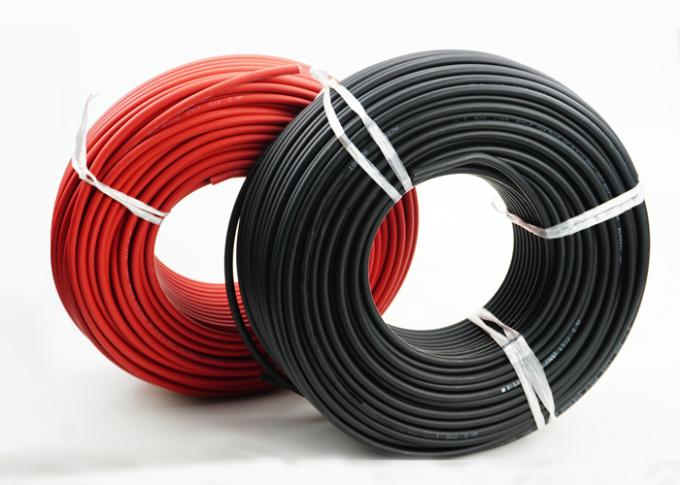

Product Image
