IP67 PV 30A 1000V DC Inline Solar Fuse Connector

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

Inline Solar Fuse Connector

,

30A Solar Fuse Connector

Product Name:
Fuse Connector
Rated Current:
30A
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Flame Class::
UL94-V0
Product Name:
Fuse Connector
Rated Current:
30A
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Flame Class::
UL94-V0
Description
IP67 PV 30A 1000V DC Inline Solar Fuse Connector



In - line Fuse Connector 30Amp 1000 V DC Male to Female PV Solar Fuse Holder



Description:



1. Compatible with cable coupler solar connector PV004-F

2. 10 Years of production experience in solar connectors

3. TUV approved & Quick and easy to install

4. Protection class IP67 Suitable for outdoor harsh environments

5. Stable connection & Reducing maintenance cost

6. Free Sample is available



Product Name:
Connector With fuse
Housing Material:
PPO
Contact Material:
Copper,sliver plated
Pin Dimention:
4.0 mm
Contact Resistance:
Less than 0.5 m ohm
Application Class:
Class A
Rated Voltage:
TUV1500V DC/UL 600V DC
Rated Current:
1~30A
Test Voltage:
6KV (5Hz, 1Min)
Flame Class:
UL94-V0
Plug Force:
Less than 50N
Withdrawal Force:
More than 50N
Rated Temperature:
-40°C~+85°C
Upper Limited Temperture:
100°C
Waterproof:
IP67/IP68
Pollution Degree:
2
Protection Degree:
Class II
Standard:
TUV
Service Life:
20 years
Suitable Cable Cross Sections:
2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire



Advantage:



*  It can be used in harsh environment

*  Double seal rings for better waterproof effect

*  Created seal, design of dust proof

*  Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

*  Lower contact resistance

*  With excellent aging resistance and UV endurance

*  Created seal, design of dust proof

*  Load capability with big current and high voltage

*  Strong pulling force capability

*  Resistance of extra high & low temperature and fireproof



FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

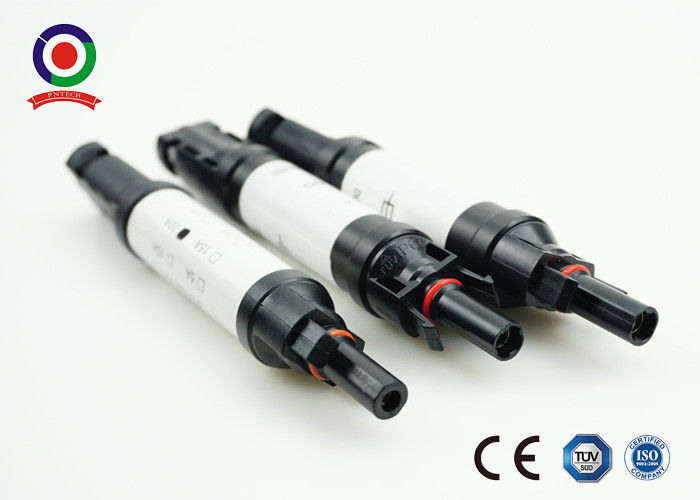

Picture of fuse connector



IP67 PV 30A 1000V DC Inline Solar Fuse Connector 0
