Product Details
Place of Origin: China
Brand Name: Pntech
Certification: CE/ISO9001
Model Number: PV004-F
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: PP bag
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs per day
Product Name: |
Connector With Fuse |
Packing: |
PP Bag |
Connector: |
Female And Male |
Rated Voltage: |
DC1000V |
Protection Degree: |
IP67 |
Flame Class:: |
UL94-V0 |
Product Name: |
Connector With Fuse |
Packing: |
PP Bag |
Connector: |
Female And Male |
Rated Voltage: |
DC1000V |
Protection Degree: |
IP67 |
Flame Class:: |
UL94-V0 |
IP67 Waterproof 15A In - Line Fuse Connector Solar Panel Cable Connectors
Description:
Our waterproof pv cable connector have better security and reliability than connector. We have a team with 0 years experience of auto parts development and manufacturing, providing customers with scientific and efficient ODM solutions and products. Our design details can be adjusted to customer needs.
|
Product Name:
|
Connector With fuse
|
|
Housing Material:
|
PPO
|
|
Contact Material:
|
Copper,sliver plated
|
|
Pin Dimention:
|
4.0 mm
|
|
Contact Resistance:
|
Less than 0.5 m ohm
|
|
Application Class:
|
Class A
|
|
Rated Voltage:
|
TUV1500V DC/UL 600V DC
|
|
Rated Current:
|
1~30A
|
|
Test Voltage:
|
6KV (5Hz, 1Min)
|
|
Flame Class:
|
UL94-V0
|
|
Plug Force:
|
Less than 50N
|
|
Withdrawal Force:
|
More than 50N
|
|
Rated Temperature:
|
-40°C~+85°C
|
|
Upper Limited Temperture:
|
100°C
|
|
Waterproof:
|
IP67/IP68
|
|
Pollution Degree:
|
2
|
|
Protection Degree:
|
Class II
|
|
Standard:
|
TUV
|
|
Service Life:
|
20 years
|
|
Suitable Cable Cross Sections:
|
2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire
|
Advantage:
* It can be used in harsh environment
* Double seal rings for better waterproof effect
* Created seal, design of dust proof
* Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
* Lower contact resistance
* With excellent aging resistance and UV endurance
* Created seal, design of dust proof
* Load capability with big current and high voltage
* Strong pulling force capability
* Resistance of extra high & low temperature and fireproof
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

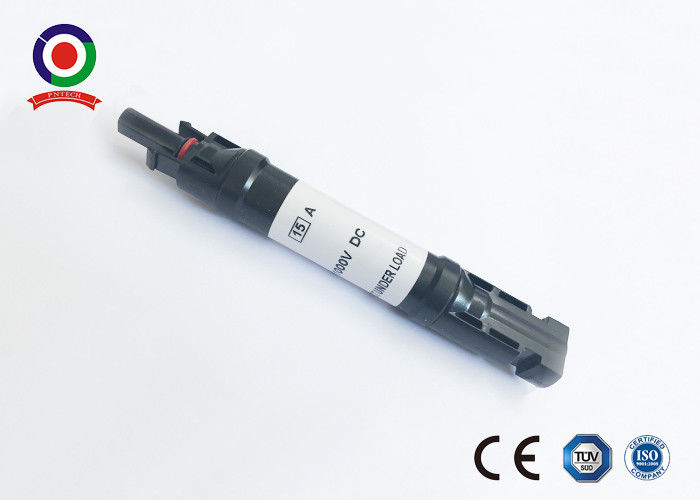

Picture of fuse connector
