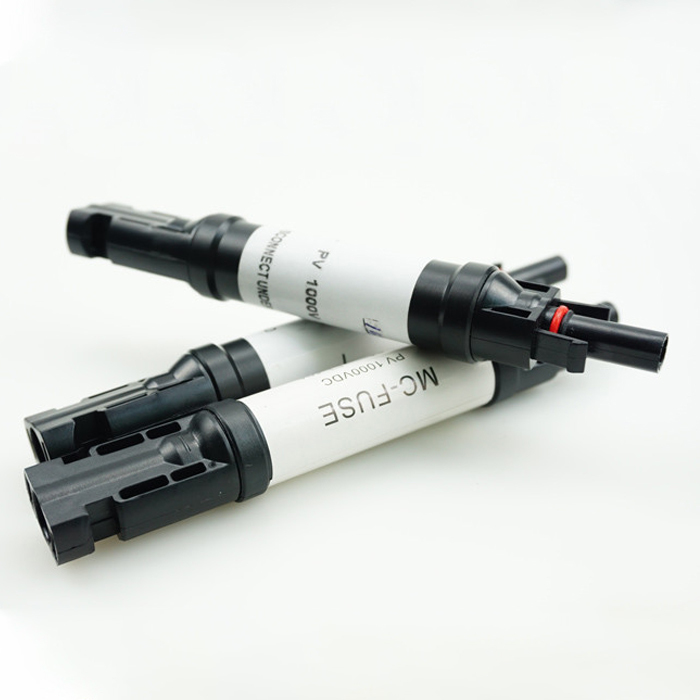

25A 1000V DC IP67 Solar Fuse Connector Male Female
25A 1000V DC IP67 Solar Fuse Connector Male Female

25A 1000V DC IP67 Solar Fuse Connector Male Female

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

DC 1000V Solar Fuse Connector

,

25A Solar Fuse Connector

Product Name:
Connector With Fuse
Current:
25A
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Flame Class::
UL94-V0
Product Name:
Connector With Fuse
Current:
25A
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Flame Class::
UL94-V0
Description
25A 1000V DC IP67 Solar Fuse Connector Male Female
Quick Connect 25A DC 1000V Solar Fuse Connector
1000V DC 25A IP67 Solar in-line Fuse Connector for Solar System Protection
Key Features
  • Connector adopts touch of reed with inne-knob type
  • Auto-lock enables easier and more reliable connection
  • Popular design suitable for most field installations
  • Quick connection capability
  • Waterproof and dustproof (IP67 rating)
  • Long service life
Technical Specifications
Product Name Connector With fuse
Housing Material PPO
Contact Material Copper, silver plated
Pin Dimension 4.0 mm
Contact Resistance Less than 0.5 m ohm
Application Class Class A
Rated Voltage TUV1500V DC/UL 600V DC
Rated Current 1~30A
Test Voltage 6KV (5Hz, 1Min)
Flame Class UL94-V0
Plug Force Less than 50N
Withdrawal Force More than 50N
Rated Temperature -40°C~+85°C
Upper Limited Temperature 100°C
Waterproof IP67/IP68
Pollution Degree 2
Protection Degree Class II
Standard TUV
Service Life 20 years
Suitable Cable Cross Sections 2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire
Product Advantages
  • Designed for harsh environments
  • Double seal rings for superior waterproofing
  • Dustproof design with created seal
  • Quick and simple assembly without special tools
  • Low contact resistance
  • Excellent aging resistance and UV endurance
  • High current and voltage load capability
  • Strong pulling force capability
  • Resistant to extreme temperatures and fireproof
Frequently Asked Questions
When can I get the quotation?
Within 24 hours of getting the inquiry. For urgent requests, please call us with complete specifications for faster pricing.
How long is the delivery time?
Typically 3-4 working days after payment, depending on order quantity.
What are your payment terms?
We accept T/T (bank transfer) and L/C.
Do you accept customized orders?
Yes, we accept customized orders.
Do you offer OEM & ODM services?
Yes, OEM & ODM services are available.
Product Image
25A 1000V DC IP67 Solar Fuse Connector Male Female 0
