TUV PV1-F DC Solar Cable 4mm2 single core 600V1000V AC 1800 DC dual insulation

China TUV PV1-F DC Solar Cable 4mm2 single core 600V1000V AC 1800 DC dual insulation supplier
TUV PV1-F DC Solar Cable 4mm2 single core 600V1000V AC 1800 DC dual insulation supplier TUV PV1-F DC Solar Cable 4mm2 single core 600V1000V AC 1800 DC dual insulation supplier

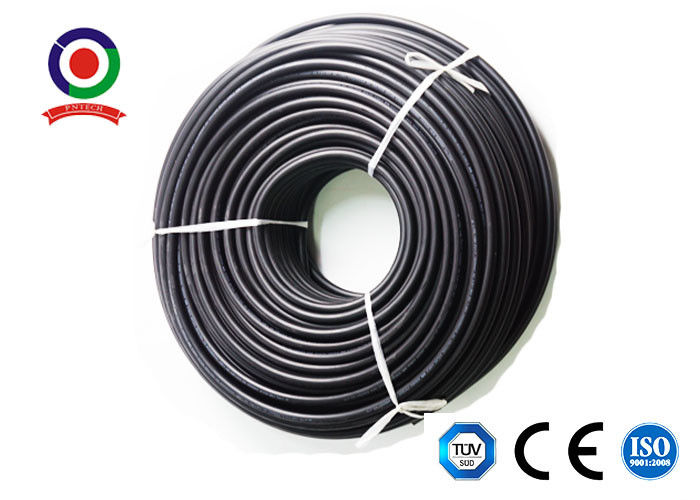

Large Image :  TUV PV1-F DC Solar Cable 4mm2 single core 600V1000V AC 1800 DC dual insulation

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: ISO9001/TUV/CE
Model Number: PV1-F 1x4mm2

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: Negotiation
Packaging Details: 250m/roll 100m/roll 500m per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: Dc Solar Cable 4mm Insulation: XLPE
Sheath: XLPE Color: Black Or Red
Cable OD: 6.1mm Packing: 250m/roll 100m/roll



TUV PV1-F DC Solar Cable 4mm2 single core 600V1000V AC 1800 DC dual insulation



Specificate



Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,

UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,

flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely

mechanically robust, very long lifetime.



Cross Section AWG Maximum Conductor Resistance at 20ºC Maximum insulation Resistance at 20ºC Maximum insulation Resistance at 90ºC Current Carrying Capacity
Single cable free in air Single cable on surfaces 2 loaded cables adjacent on surfaces
mm2 - Ω MΩ.km MΩ.km A A A
1.5 16 13.7 859 0.859 30 29 24
2.5 14 8.21 691 0.691 41 39 33
4 12 5.09 579 0.579 55 52 44


Application :



Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.





Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

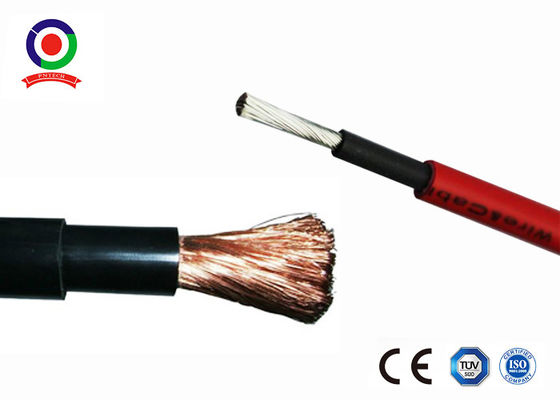

Picture of DC solar cable 4mm



TUV PV1-F DC Solar Cable 4mm2 single core 600V1000V AC 1800 DC dual insulation
