Product Details
Place of Origin: China
Brand Name: Pntech
Certification: ISO9001/TUV/CE
Model Number: PV1-F 1x2.5 mm2
Payment & Shipping Terms
Minimum Order Quantity: 250m per roll
Price: Negotiation
Packaging Details: 250m per roll , 500m per carton
Delivery Time: 3-10days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Product Name: |
DC Solar Cable |
Rated Voltage: |
1800V DC |
Current: |
41A |
Color: |
Black Or Red |
Conductor: |
Tinned Copper |
Packing: |
250m Per Roll |
Product Name: |
DC Solar Cable |
Rated Voltage: |
1800V DC |
Current: |
41A |
Color: |
Black Or Red |
Conductor: |
Tinned Copper |
Packing: |
250m Per Roll |
PV1-F 2.5 mm2 Solar PV Cable / DC cable / XLPE cable TUV approved for solar system
A solar cable is the interconnection cable used in photovoltaic power generation. Solar cables interconnect solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. They can be used within a large temperature range.
Specificate
(1)Conductor: Tinned annealed copper
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red
(4)Marking:
TüV 2 PfG 1169 PV1-F 1×2,5mm2 AC 0.6/1.0KV DC 1.8KV NINGBO PNTECH NEW ENERGY CO.,LTD.
Type | Cross | Strand | Conductor | Conductor | Outer | Rated | Rated | Weight |
section | design | diameter | resistance | diameter | voltage | current | ||
mm² | No.x ø (mm) | mm | Ω /km | mm | VAC/DC | A | Kg/km | |
PV-1*1.5 mm² | 1.5 | 30x ø 0.25 | 1.6 | 13.5 | 4.8 | 1000/1800 | 30 | 35 |
PV-1*2.5 mm² | 2.5 | 50x ø 0.25 | 2.0 | 8.21 | 5.3 | 1000/1800 | 41 | 50 |
PV-1*4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 5.09 | 6.1 | 1000/1800 | 55 | 70 |
PV-1*6.0 mm² | 6.0 | 84x ø 0.3 | 3.3 | 3.39 | 7.1 | 1000/1800 | 70 | 95 |
PV-1*10.0 mm² | 10.0 | 80x ø 0.4 | 4.4 | 1.95 | 8.5 | 1000/1800 | 98 | 155 |
PV-1*16 mm² | 16.0 | 120x ø 0.4 | 5.2 | 1.24 | 10.2 | 1000/1800 | 132 | 230 |
PV-1*25 mm² | 25.0 | 196x ø 0.40 | 7.4 | 0.795 | 12.0 | 1000/1800 | 176 | 341 |
PV-1*35 mm² | 35.0 | 276x ø 0.40 | 9.00 | 0.565 | 14.0 | 1000/1800 | 218 | 467 |
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
Name | PV Cable |
The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
Flame retardant, cutting resistance and penetration resistance. | |
Cable protection level Ⅱ level. | |
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
It conforms to ROHS, and the insulation resistance is small after immersion. | |
Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
Cable structure | Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F |
25,16 and 10, 6,4,2.5 mm2 PV wire | |
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
Sheath: low smoke and halogen free material thickness > 0.5mm. | |
Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 4mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

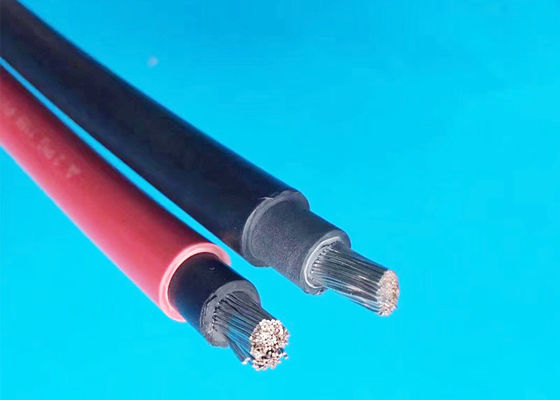

Picture of DC solar cable 2.5mm
