4.0mm Pin Solar Fuse Connector Copper Silver Plated IP67

Name: 4.0mm Pin Solar Fuse Connector Copper Silver Plated IP67
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-F
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Silver Plated Solar Fuse Connecto, Copper Solar Fuse Connector


Product Name:	Connector With Fuse	Contact Material:	Copper, Silver Plated
Connector:	Female And Male	Rated Voltage:	DC1000V
Protection Degree:	IP67	Flame Class::	UL94-V0

Product Name:	Connector With Fuse
Contact Material:	Copper, Silver Plated
Connector:	Female And Male
Rated Voltage:	DC1000V
Protection Degree:	IP67
Flame Class::	UL94-V0

Description

4.0mm Pin Solar Fuse Connector Copper Silver Plated IP67

4.0mm Pin Copper Silver Plated Solar Fuse Connector

Photovoltaic Fuse Connector 10A 15A 20A 30A compatible for solar cable installation with superior performance in harsh environments.

Key Features

The fuse series connectors for enhanced safety
Low power loss design
Auto-lock mechanism ensures secure male and female connections

Technical Specifications

Product Name:	Connector With fuse
Housing Material:	PPO
Contact Material:	Copper, silver plated
Pin Dimension:	4.0mm
Contact Resistance:	Less than 0.5 m ohm
Application Class:	Class A
Rated Voltage:	TUV1500V DC/UL 600V DC
Rated Current:	1~30A
Test Voltage:	6KV (5Hz, 1Min)
Flame Class:	UL94-V0
Plug Force:	Less than 50N
Withdrawal Force:	More than 50N
Rated Temperature:	-40°C~+85°C
Upper Limited Temperature:	100°C
Waterproof:	IP67/IP68
Pollution Degree:	2
Protection Degree:	Class II
Standard:	TUV
Service Life:	20 years
Suitable Cable Cross Sections:	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Product Advantages

Designed for harsh environmental conditions
Double seal rings for superior waterproofing (IP67/IP68)
Dust-proof sealed design
Tool-free quick assembly and disassembly
Low contact resistance for efficient power transfer
Excellent aging resistance and UV endurance
High current and voltage load capability
Strong mechanical pulling force resistance
Extreme temperature resistance (-40°C to +85°C)
Fireproof construction (UL94-V0 rated)

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent pricing, please call with complete cable specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate custom specifications.

Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.

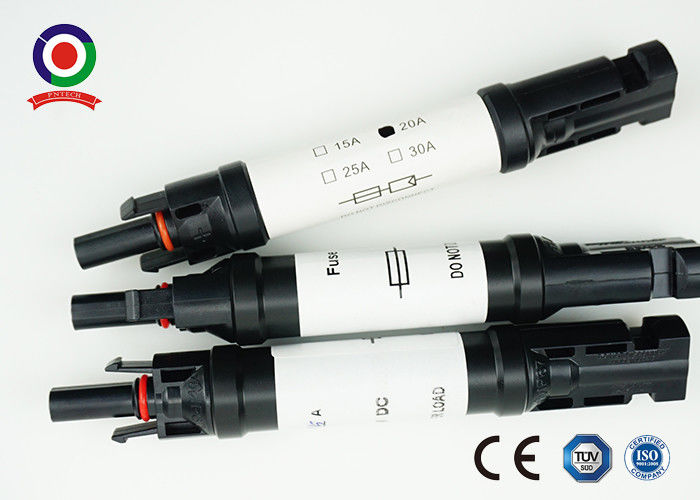

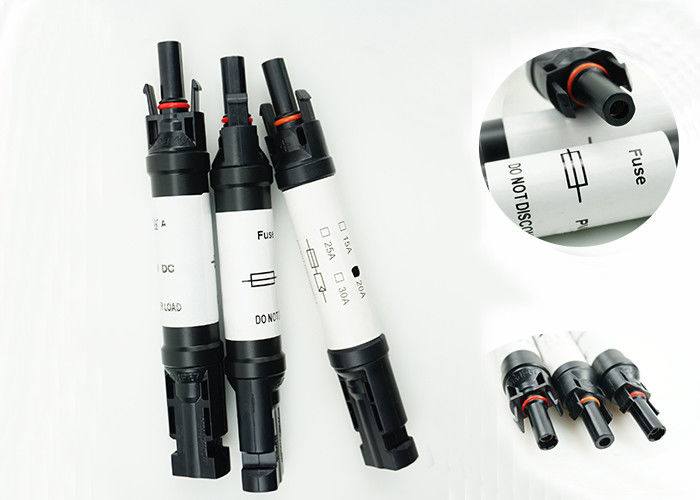

Product Image
