6mm2 IP67 Solar PV Fuse Connector for 2.5-6mm2 Cable
6mm2 IP67 Solar PV Fuse Connector for 2.5-6mm2 Cable

6mm2 IP67 Solar PV Fuse Connector for 2.5-6mm2 Cable

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

IP67 Solar PV Connectors

,

6mm2 Solar PV Connectors

Product Name:
Connector With Fuse
Suitable Cable:
2.5mm2 , 4mm2 , 6mm2
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Flame Class::
UL94-V0
Product Name:
Connector With Fuse
Suitable Cable:
2.5mm2 , 4mm2 , 6mm2
Connector:
Female And Male
Rated Voltage:
DC1000V
Protection Degree:
IP67
Flame Class::
UL94-V0
Description
6mm2 IP67 Solar PV Fuse Connector for 2.5-6mm2 Cable
Heat Resistance Anti UV PPO 6mm² IP67 Solar PV Connectors
IP67 Solar PV Fuse Connector Holder Male and Female for Solar Energy System
Key Features
  • Simple assembly, easy to use
  • Suitable for PV cable sizes 2.5mm² to 6mm²
  • IP67 waterproof rating
  • PPO housing material with UV resistance
  • High current carrying capacity
  • Copper tin plated contacts
  • Excellent heat resistance and durability
Technical Specifications
Product Name Connector With fuse
Housing Material PPO
Contact Material Copper, silver plated
Pin Dimension 4.0 mm
Contact Resistance Less than 0.5 mΩ
Application Class Class A
Rated Voltage TUV 1500V DC/UL 600V DC
Rated Current 1~30A
Test Voltage 6KV (5Hz, 1Min)
Flame Class UL94-V0
Plug Force Less than 50N
Withdrawal Force More than 50N
Rated Temperature -40°C to +85°C
Upper Limited Temperature 100°C
Waterproof IP67/IP68
Pollution Degree 2
Protection Degree Class II
Standard TUV
Service Life 20 years
Suitable Cable Cross Sections 2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire
Product Advantages
  • Designed for harsh environments
  • Double seal rings for superior waterproofing
  • Dust-proof sealed design
  • Quick and simple assembly without tools
  • Low contact resistance
  • Excellent aging resistance and UV endurance
  • High current and voltage load capability
  • Strong pulling force resistance
  • Extreme temperature and fire resistance
Frequently Asked Questions
When can I get the quotation?
Within 24 hours of inquiry. For urgent pricing, please call with complete cable specifications.
How long is the delivery time?
Typically 3-4 working days after payment, depending on quantity.
What payment methods do you accept?
We accept T/T (bank transfer) and L/C.
Do you accept customized orders?
Yes, we accept customized orders.
Do you offer OEM & ODM services?
Yes, OEM & ODM services are available.

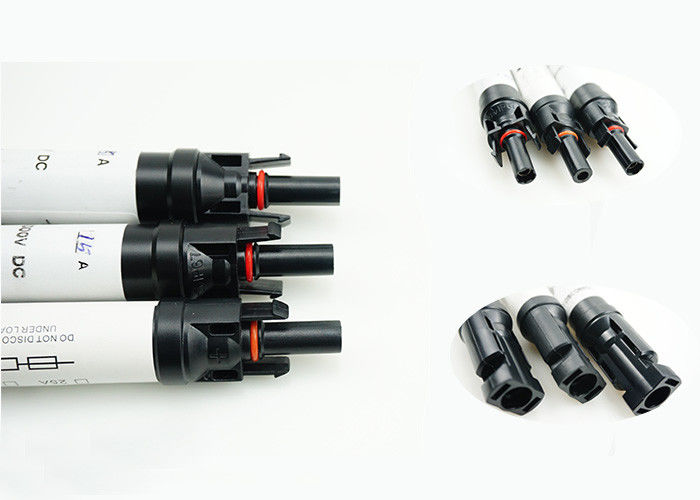

Product Image
6mm2 IP67 Solar PV Fuse Connector for 2.5-6mm2 Cable 0

Tags:

PPO Solar Fuse Connector,

Crimp Inline Fuse Holder,

Copper Solar Fuse Connector
