|Product Name:||4 To 1 Joint Branch Connector||Suitable Cable:||AWG14 / 12 / 10|
|Rated Voltage:||1000VDC||Protection Degree:||IP67|
Waterproof Branch Connector PPO Material Double Fixed Connection
4 to 1 Joint Branch Conncetor for solar system.
Insulation material: PPO
Rated current: 30A
Rated voltage: 1500V
Test voltage: 6KV(50Hz,1Min)
Contact material: Copper, tin plated
Contact resistance: 5mΩ
Degree of protection: IP67
Safety class: II
Flame calss: UL94-V0
Insertion force: ≤50N
Withdrawal force: ≥50N
A temperature range: -40ºC ~ + 90ºC
Connector diameter: 2.5mm2,4 mm2,
Suitable cable: AWG14 / 12 / 10
|Connector||Connector name||Solar Connector|
|Rated voltage||1000V DC|
|Degree of protection||IP67|
|Temperature range||-40℃ ~ +110℃|
|Insertion force/withdrawal force||≤50N/≥50N|
|Cable conductor||Tinned copper or bare copper|
|Cable Length||0.1m-10m Optional|
|function||UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance|
|Temperature Range||-40℃ ~ +90℃|
|Product warranty time||Return Policy: Provide within half of a month.|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

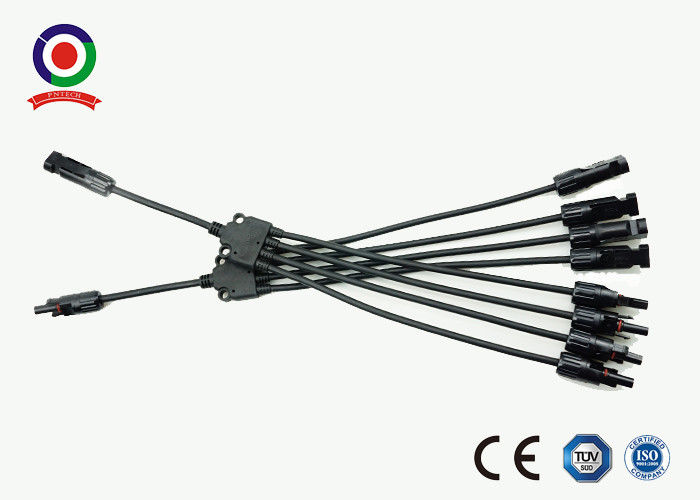

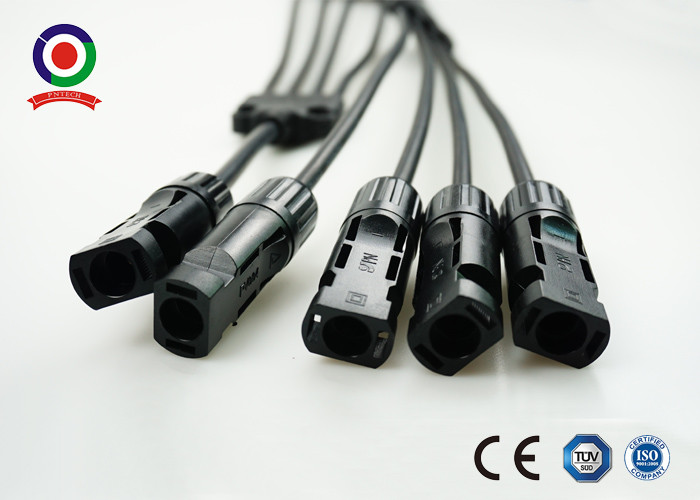

Picture of 4 to 1 Joint Branch connector
