Fire Resistant Branch Connector , T Type Male And Female Connectors
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||5 To 1 T Branch Connectors||Type||5 To 1|
|Gender||Female And Male||Rated Voltage||1000VDC|
|Protection Degree||IP67||Rated Current||30A|
solar panel branch connector,
pv panel connectors
5 to 1 T Branch Connectors One Female to Five Male One Male to Five Female
- 1 Pair of (1 to 5) Solar Panel Cable Connectors(one female to three male (F/MMMMM) and one male to three female (M/FFFFF)
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
- Compatible with PV cables with different insulation diameters
- Resistance of extra high & low temperature and fireproof
- Load capability with big current and high voltage
|Product Name||branch connector|
|voltage rating||≤DC 1000V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

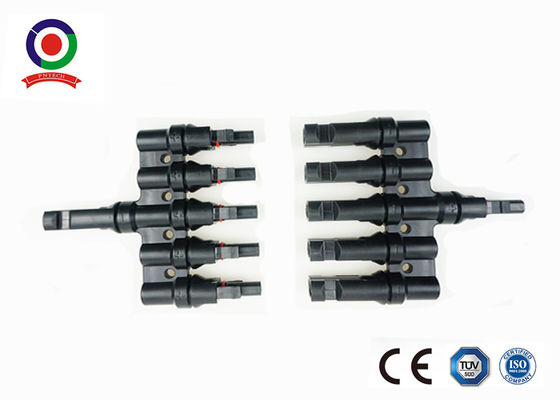

Picture of 5 to 1 T Branch Connectors
