3 To 1 Solar Branch Connector T Type Excellent Aging Resistance 30A Rated Current
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||T Branch Solar Connector||Insertion Force/withdrawal Force||≤50N|
|Gender||Female And Male||Rated Voltage||1000VDC|
|Protection Degree||IP67||Rated Current||30A|
solar panel branch connector,
pv panel connectors

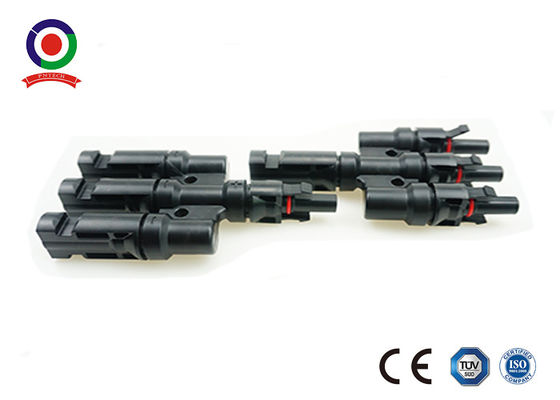

T Branch Solar Connector 3 to 1 Male and Female Connector CE Approved
With excellent aging resistance and UV endurance, it can be used in harsh environment. The cable connection adopts means of rivet and lock. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
|Product Name||branch connector|
|voltage rating||≤DC 1000V|
|pollution degree||CAT III/2|
|shell material||resistance material,PP0|
|connecting system||cromp connection|
|contact resistance of plug and connectors||1MΩ|
|testing voltage||DC 6000V(50Hz,1min)|
|contact material||copper, Ag plated|
|insertion force/withdrawal force||≤50N/≥50N|
|inner material||copper tin plating|
|Connecting System||Crimp connection|
|Contact material:||Copper,Tin Plated|
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
Picture of T Branch Solar Connector
