Fire Resistant EN50618 20m customized length 6mm Solar Panel Extension Cable

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number DC-00
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time 3-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000pairs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Solar PV Connector Cable Cable Voltage AC 0.6/1KV DC1800V
Rated Voltage 1000VDC Degree Of Protection IP67
Rated Current 30A Contact Resistance ≤5mΩ
Highlight

6mm Solar Panel Extension Cable

,

IP67 Solar Panel Extension Cable

Leave a Message
Product Description


Fire Resistant EN50618 20m customized length 6mm Solar Panel Extension Cable

Solar cable Description



Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;

We can provide the cables as well as connectors linked with the cable;

We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery;

TUV PV Cable Fire Resistant Cables
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502


Connector

1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.



Name Solar Cable
Connector Connector name Solar Connector
Rated current 30A
Rated voltage 1000V DC
Overvoltage category CATIII
Degree of protection IP67
Flame class UL94-V0
Safety class II
Temperature range -40℃ ~ +110℃
Insertion force/withdrawal force ≤50N/≥50N
Wire/Cable Cable Guage 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductor Tinned copper or bare copper
Cable color Red&Black
Cable Insulation XLPE
Cable Length 0.1m-10m Optional
function UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range -40℃ ~ +90℃
OEM/ODM Yes.Offered.
Product warranty time Return Policy: Provide within half of a month.
Warranty: 1year.


Assembly Instructions

During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67

Wiring solar Equipped Modules in Parallel: Parallel wiring requires the positive leads to be connected together and the negative leads to be connected together. This method will increase the current at max power (Imp) while keeping the voltage constant. For example, let's say your modules are rated for 8 amps Imp, and 18 volts Vmp. If you connect two of them in parallel, your total amps would be 16 amps Imp and the voltage would remain at 18 volts Vmp. When wiring two or more modules in parallel, you will need some additional equipment. If you're only using two modules, the easiest method is to use solar multibranch connectors. You obviously can't connect two male connectors or two female connectors together, so we use the multibranch connectors to accomplish that.

Advantage:

• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV


FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

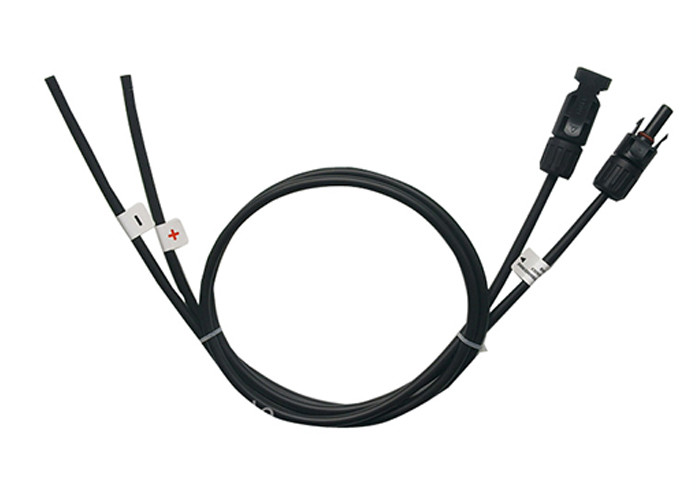

Picture of  Solar PV Connector Cable
