Product Name: |
Solar Panel Cable Connector |
Cable Type: |
PV1-F 1x6mm2 |
Rated Voltage: |
1000VDC |
Degree Of Protection: |
IP67 |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Product Name: |
Solar Panel Cable Connector |
Cable Type: |
PV1-F 1x6mm2 |
Rated Voltage: |
1000VDC |
Degree Of Protection: |
IP67 |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
OEM meters 6mm2 Solar Panel Cable Connector Female Male Black Red
Solar cable Description
Cable description:
TUV PV Cable Fire Resistant Cables
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Connector
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.
Name | Solar Cable | |
Connector | Connector name | Solar Connector |
Rated current | 30A | |
Rated voltage | 1000V DC | |
Overvoltage category | CATIII | |
Degree of protection | IP67 | |
Flame class | UL94-V0 | |
Safety class | II | |
Temperature range | -40℃ ~ +110℃ | |
Insertion force/withdrawal force | ≤50N/≥50N | |
Wire/Cable | Cable Guage | 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²) |
Cable conductor | Tinned copper or bare copper | |
Cable color | Red&Black | |
Cable Insulation | XLPE | |
Cable Length | 0.1m-10m Optional | |
function | UV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance | |
Temperature Range | -40℃ ~ +90℃ | |
OEM/ODM | Yes.Offered. | |
Product warranty time | Return Policy: Provide within half of a month. | |
Warranty: 1year. |
Assembly Instructions
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

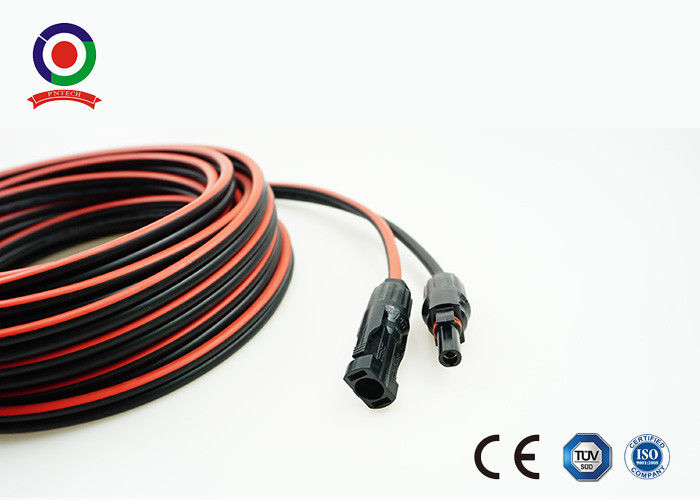

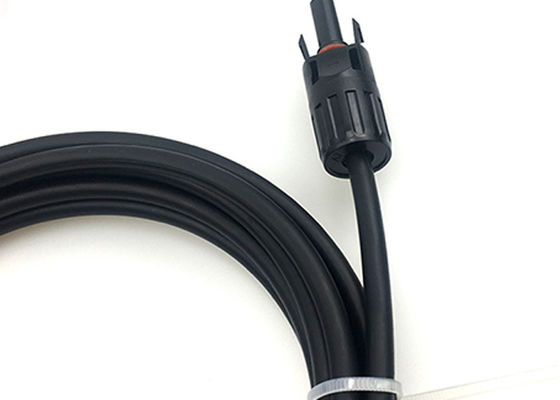

Picture of Solar Panel Cable Connector
