30A Flame Retardant 6mm2 DC Solar Junction Cable
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||DC Solar Junction Cable With||Fire Performance||IEC 60332-1|
|Rated Voltage||1000VDC||Degree Of Protection||IP67|
|Rated Current||30A||Contact Resistance||≤5mΩ|
6mm2 DC Solar Junction Cable,
IP67 Solar Junction Cable
DC solar junction cable with connectors male and female of 2.5 4 6mm2
Solar cable Description
high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.
|mm²||No.x ø (mm)||mm||Ω /km||mm||VAC/DC||A||Kg/km|
|PV-1*1.5 mm²||1.5||30x ø 0.25||1.6||13.5||4.8||1000/1800||30||35|
|PV-1*2.5 mm²||2.5||50x ø 0.25||2.0||8.21||5.3||1000/1800||41||50|
|PV-1*4.0 mm²||4.0||56x ø 0.3||2.6||5.09||6.1||1000/1800||55||70|
|PV-1*6.0 mm²||6.0||84x ø 0.3||3.3||3.39||7.1||1000/1800||70||95|
1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.
|Rated current:||22A(2.5mm2) , 30A(4mm2,6mm2)|
|Contact material:||Silver plated copper|
|Contact resistance of plug connectors:||≤5mΩ|
|Locking system:||Snap in|
|Rated voltage||TUV 1000V DC|
|Suitable cable cross sections||2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG|
|Test voltage||DC 8KV 1min|
|Protection class||Class II|
|Terminal Material||Tinned copper|
|Contact resistance||≤ 5mΩ|
|IP rating||IP67(IEC 60529)|
|Pull-out force||≥ 50N|
|Insertion Force||≤ 50N|
|Test temperature||-40ºC~ +85ºC|
|Flame Class||UL94V - 0|
During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

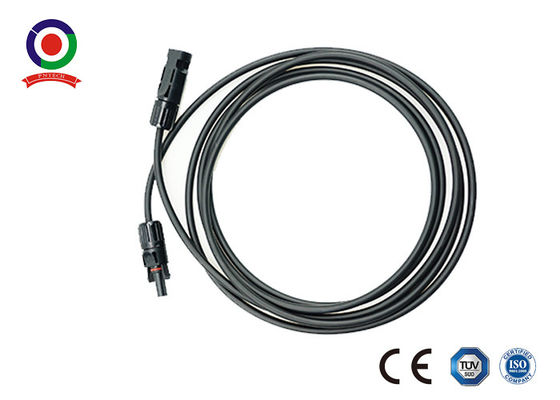

Picture of DC solar junction cable with
