High Robustness UV Resistant Solar Panel Connectors with Strong Current Carrying Capacity

Name: High Robustness UV Resistant Solar Panel Connectors with Strong Current Carrying Capacity
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV005

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar pv connectors, solar cable connectors


Product Name:	Solar Connector	Locking System:	Snap In
Rated Voltage:	1000VDC	Protection Degree:	IP67
Rated Current::	30A	Contact Resistance:	≤5mΩ

Product Name:	Solar Connector
Locking System:	Snap In
Rated Voltage:	1000VDC
Protection Degree:	IP67
Rated Current::	30A
Contact Resistance:	≤5mΩ

Description

High Robustness UV Resistant Solar Panel Connectors with Strong Current Carrying Capacity

High Robustness Solar Panel Connectors UV Resistant Strong Current Carrying Capacity

CE IP67 Solar Panel Connector for Solar cable 2.5mm² 4mm² 6mm² connection

Connector Features

Compliant with DIN V VDE V 0126-3/12.06 and UL1703 standards
High robustness and UV resistance for durable outdoor use
Touch and insertion design with inner-knob type connection
Auto-lock mechanism ensures secure male/female connection
Universal design suitable for most field installations
Simple on-site processing and installation
Accommodates PV cables with various insulation diameters
High current carrying capacity for efficient power transmission

Technical Specifications

Parameter	Value
Rated voltage	1000V DC (TUV certified)
Rated current	22A (2.5mm²), 30A (4mm², 6mm²)
Test voltage	6KV (50Hz), DC 8KV 1min
Protection degree	IP67/IP2X (IEC 60529)
Insulation material	PC/PA/PPO/TPE
Contact material	Silver plated copper
Operating temperature	-40°C to +90°C
Flame class	UL94-V0
Contact resistance	≤5mΩ
Insertion/Withdraw force	≤50N / ≥50N
Suitable cable	2.5mm² ~ 10.0mm² (14AWG ~ 8AWG)

Assembly Instructions

For safety and compliance with technical specifications, please follow these guidelines:

Always isolate PV Connectors from power supply during assembly/disassembly
End product must provide protection against electric shock
Never unplug connectors while under load - switch off DC/AC converter first
Protect disconnected connectors with sealing caps against dirt and water
Properly assembled connections are watertight (IP67 rated)

Product Advantages

Simple, quick, and safe field assembly
Innovative design with independent intellectual property rights
High mechanical endurance and reliability
Excellent current/voltage capacity (30A, 1000VDC)
Low transition resistance for efficient power transfer
Advanced waterproof and dustproof design (IP68)
Premium materials withstand extreme temperatures (-40°C to +90°C)
UV resistant for long-term outdoor applications
TUV certified for quality assurance

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we accommodate both OEM and ODM requirements.

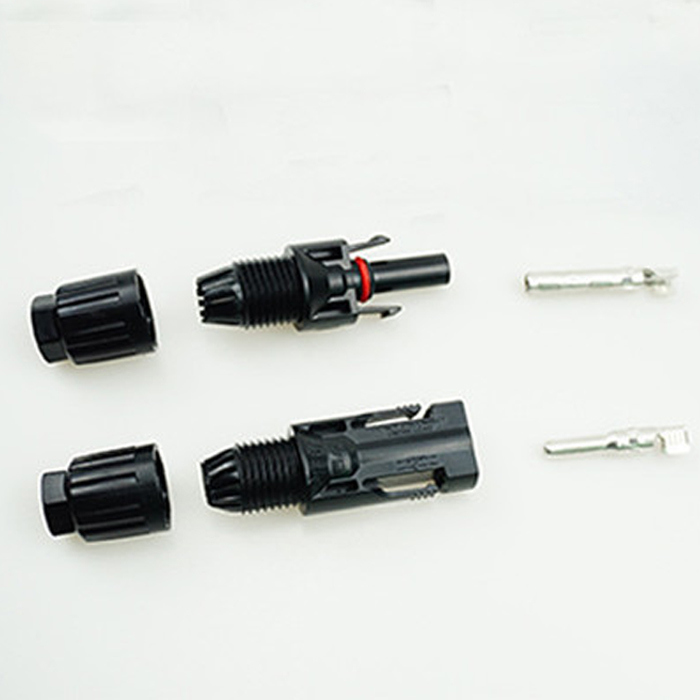

Product Image
