High Robustness Solar Panel Connectors UV Resistant Strong Current Carrying Capacity

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: PV005

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

solar pv connectors

,

solar cable connectors

Product Name:
Solar Connector
Locking System:
Snap In
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Product Name:
Solar Connector
Locking System:
Snap In
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Description
High Robustness Solar Panel Connectors UV Resistant Strong Current Carrying Capacity



CE IP67 Solar Panel Connector for Solar cable 2.5mm2 4mm2 6mm2 connection



Connector Description



1) Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2) highly robustness,UV-Resistance.
3) Connector adopts touch and insertion of reed with inner-knob type.
4) Auto-lock equipment of male and female points enable connection more easy and reliable.
5) Popular figure suit most of field installation.
6) Simple on-site processing.
7) Accommodates PV cable with deferent insulation diameters.
8) High current carrying capacity.



Rate voltage: 1000v
Rated current: 22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage: 6KV(50Hz)
Protect degree: IP67/IP2X
Insulation material: PC/PA/PPO/TPE
Contact material: Silver plated copper
Operating temperature: -40°C~+90°C
Safe class: 2
Flame class: UL94-V0
Contact resistance of plug connectors: ≤5mΩ
Insertion force: ≤50N
Withdraw force: ≥50N
Suitable cable: 2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system: Snap in
Product No. PV005
Rated voltage TUV 1000V DC
Rated current 30A
Suitable cable cross sections 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal size Φ4.0mm
Test voltage DC 8KV 1min
Pollution degree 2
Protection class Class II
Terminal Material Tinned copper
Contact resistance ≤ 5mΩ
Insulation Materials PPO
IP rating IP67(IEC 60529)
Pull-out force ≥ 50N
Insertion Force ≤ 50N
Test temperature -40ºC~ +85ºC
Flame Class UL94V - 0


Assembly Instructions

During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67


Advantage:

• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

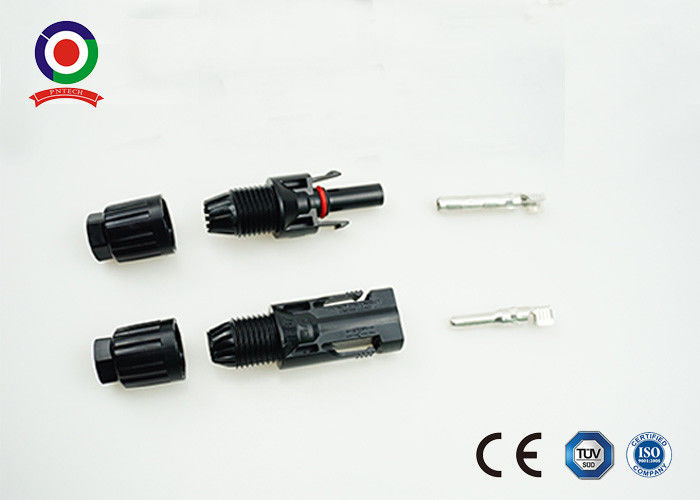

Picture of  solar connector
