PPO Material Compatible Solar Panel Connectors 30A Multi Contact Connector

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: PV005

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

solar pv connectors

,

solar cable connectors

Product Name:
Connector
Flame Class:
UL94-V0
Test Voltage:
6KV(50Hz,1Min)
Protection Degree:
IP67
Rated Current::
30A
Color:
Black
Product Name:
Connector
Flame Class:
UL94-V0
Test Voltage:
6KV(50Hz,1Min)
Protection Degree:
IP67
Rated Current::
30A
Color:
Black
Description
PPO Material Compatible Solar Panel Connectors 30A Multi Contact Connector



PPO material IP67 Compatible 30A Male Female Connector for Solar Panel



Connector Description:



Multi-Contact Connectors

Samlex's -2 Kit contains 1 male and 1 female solar panel connector. This type of connector system

is easy to install and uses "snap-in" safety locking tabs to lock two mating connectors, thereby avoiding

unintentional disconnection. Also when locked, the mating contacts are sealed against ingress of dust and

water. Specifi cations are as follows:

Connectors supplied with this kit are for use with wire size AWG # 10 or AWG # 12 with outer insulation

diameter of 3 - 6 mm

Contact diameter 4 mm

Maximum rated current - 30 A

Maximum system voltage - 1000 V

Degree of ingress protection when connected and properly locked - IP67

Temperature range 40°C to +90°C

TüV Rheinland - type approved, UL listed.

Construction of Connectors

The connectors can be crimped / soldered to wire size AWG #10 or AWG # 12 with an outer insulation

diameter of 3 to 6 mm.



Assembly Instructions



During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

The end product must provided protection from electric shock

Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

Disconnected connectors should be protected from dirt and water with sealing caps.

Plugged parts are watertight IP67



Product Name Connector
Rated Current 30A(2.5~6mm2)
Rated Voltage 1000V DC
Test Voltage 6000V(50HZ, 1min)
Overvoltage category/Pollution degree CAT III/2
Contact resistence of plug connectors 1 mΩ
Conatct material Copper, Ag plated
Insulation material PC
Degree of protection IP20/IP67
Flame class UL94-V0
Safety class II
Suitable cable 2.5-6mm2
Insertion force/Withdrawal force ≤50N/ ≥50N
Connecting system Crimp connection
Temperature range -40ºC~+125ºC
Packing unit 1000pcs
Minimum order quantity 1000pcs
Weight per Piece (excluding packing) 25g
Custom tariff number 8536690000
Country of origin China


Advantage:


• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

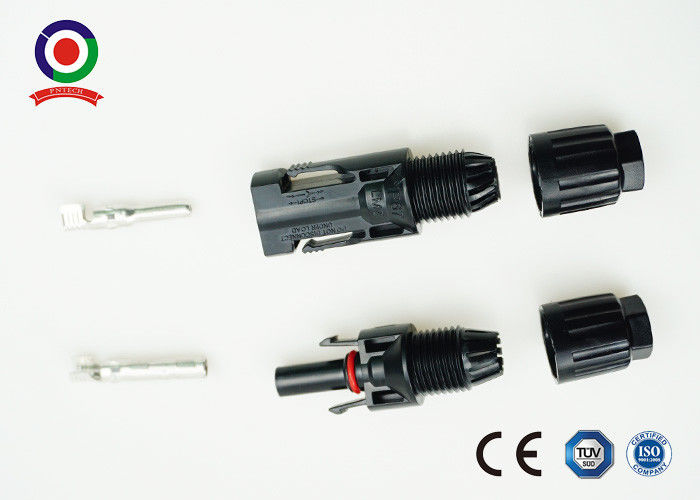

Picture of  solar panel connectors
