Ultraviolet Resistant Connector PC Material For Multiple Solar System Connection
|Product Name||Connector||Protection Class||Class II|
|Gender||Female And Male||Protection Degree||IP67|
|Rated Current||30A||Contact Resistance||≤5mΩ|
solar cable connectors,
plug socket connector
PC material TUV approved Connector for Multiple Solar System Connection
1) Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2) highly robustness,UV-Resistance.
3) Connector adopts touch and insertion of reed with inner-knob type.
4) Auto-lock equipment of male and female points enable connection more easy and reliable.
5) Popular figure suit most of field installation.
6) Simple on-site processing.
7) Accommodates PV cable with deferent insulation diameters.
8) High current carrying capacity.
Contact presistance: <5mΩ
Safety class: class II
Waterproof grade: IP 65
Cable standard: 2.5/4/6mm2
Flame retardant grade: UL94-V0
Insulation material: PC
Composite contact material: Copper, silver plating
T-branch connector (TUV / CE approval)
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
|Rated Voltage||1000V DC|
|Test Voltage||6000V(50HZ, 1min)|
|Overvoltage category/Pollution degree||CAT III/2|
|Contact resistence of plug connectors||1 mΩ|
|Conatct material||Copper, Ag plated|
|Degree of protection||IP20/IP67|
|Insertion force/Withdrawal force||≤50N/ ≥50N|
|Connecting system||Crimp connection|
|Minimum order quantity||1000pcs|
|Weight per Piece (excluding packing)||25g|
|Custom tariff number||8536690000|
|Country of origin||China|
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

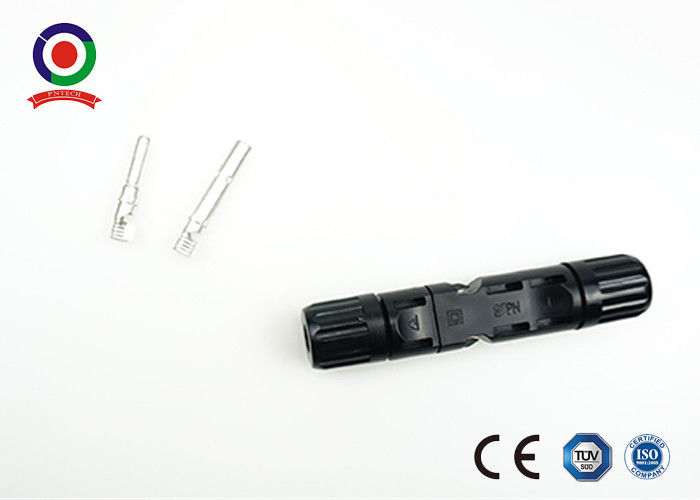

Picture of connector
