Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV004
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Product Name: |
DC Connector |
Packing: |
PP Bag |
Protection Degree: |
IP67 |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Color: |
Black |
Product Name: |
DC Connector |
Packing: |
PP Bag |
Protection Degree: |
IP67 |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Color: |
Black |
TUV 30A IP67 Male and Female DC Connector for Solar Panel Installation
Solar PV Connector for Photovoltaic Description:
Rated current: 30A (2.5-4.0mm2)
Degree of protection: IP2 */IP67
Rated voltage: 1000V DC
Flammability rating: UL94-V0
Test voltage: 6000V (50Hz, 1min)
Safety: II
Overvoltage category/pollution Index: CATIII / 2
Adapter wire: OD4.5-7.0 (2.5-4.0mm2)
Connector contact resistance: 0.5m
Insertion/extraction force: less or equal to 50N/equal or greater than 50N
Connector conductor material: copper, tin
Connection: crimp
Connector Insulation material: PC
Operating temperature range: -40 - +90°C
Assembly Instructions
1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67
| Product Name | Connector |
| Rated Current | 30A(2.5~6mm2) |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50HZ, 1min) |
| Overvoltage category/Pollution degree | CAT III/2 |
| Contact resistence of plug connectors | 1 mΩ |
| Conatct material | Copper, Ag plated |
| Insulation material | PC |
| Degree of protection | IP20/IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Suitable cable | 2.5-6mm2 |
| Insertion force/Withdrawal force | ≤50N/ ≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40ºC~+125ºC |
| Packing unit | 1000pcs |
| Minimum order quantity | 1000pcs |
| Weight per Piece (excluding packing) | 25g |
| Custom tariff number | 8536690000 |
| Country of origin | China |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

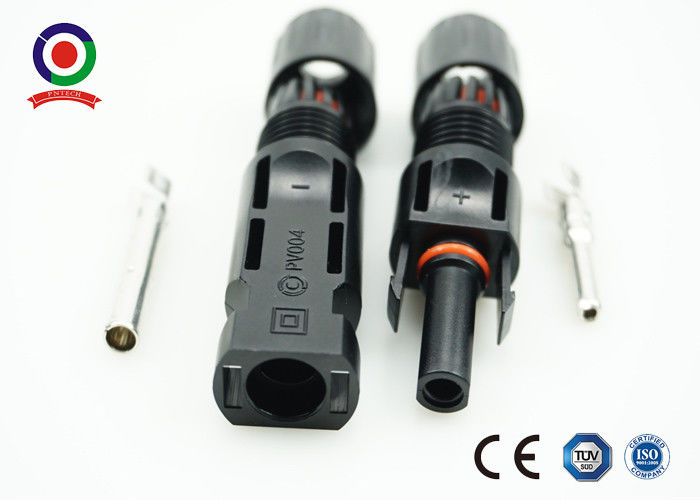

Picture of DC connector
