Easy Installation Quick Connector High Temperature Resistance Properties
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Connector | HS Code | 8536690000 |
|---|---|---|---|
| Gender | Female And Male | Rated Current | 30A |
| Contact Resistance | ≤5mΩ | Color | Black |
| High Light | solar pv connectors,solar cable connectors |
||
Product Description
1000V DC IP67 30A Solar Tinned Copper solar panel PV Connector with TUV CE
Connector for Photovoltaic Description:
Rated current: 30A (2.5-4.0mm2)
Degree of protection: IP2 */IP67
Rated voltage: 1000V DC
Flammability rating: UL94-V0
Test voltage: 6000V (50Hz, 1min)
Safety: II
Overvoltage category/pollution Index: CATIII / 2
Adapter wire: OD4.5-7.0 (2.5-4.0mm2)
Connector contact resistance: 0.5m
Insertion/extraction force: less or equal to 50N/equal or greater than 50N
Connector conductor material: copper, tin
Connection: crimp
Connector Insulation material: PC
Operating temperature range: -40 - +90°C
Connector for Photovoltaic Solar panel:
a. Simple on-site processing
b. Mating safety provided bykeyed housings
c. Multiple plugging and unplugging cycles
d. Accomodates PV cable with different insulation diameters
e. High current carrying capacity
f. TUV approved
| Product Name | Connector |
| Rated Current | 30A(2.5~6mm2) |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50HZ, 1min) |
| Overvoltage category/Pollution degree | CAT III/2 |
| Contact resistence of plug connectors | 1 mΩ |
| Conatct material | Copper, Ag plated |
| Insulation material | PC |
| Degree of protection | IP20/IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Suitable cable | 2.5-6mm2 |
| Insertion force/Withdrawal force | ≤50N/ ≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40ºC~+125ºC |
| Packing unit | 1000pcs |
| Minimum order quantity | 1000pcs |
| Weight per Piece (excluding packing) | 25g |
| Custom tariff number | 8536690000 |
| Country of origin | China |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

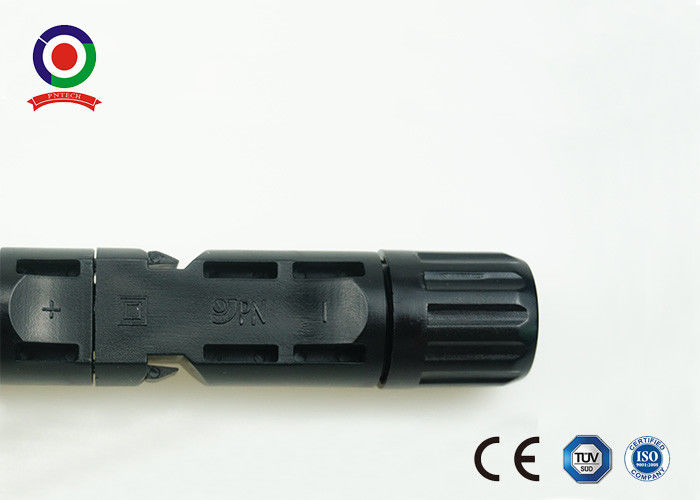

Picture of solar panel PV connector
