Waterproof Multi Contact Solar Panel Connectors TUV Approved For Power System

Place of Origin China
Brand Name Pntech
Certification TUV/CE/ISO9001
Model Number PV004
Minimum Order Quantity 1set
Price Negotiation
Packaging Details 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time 3-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000pairs per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Connector HS Code 8536690000
Gender Female And Male Protection Degree IP67
Rated Current 30A Color Black
Highlight

solar pv connectors

,

solar cable connectors

Leave a Message
Product Description


TUV approved IP67 waterproof PC Solar Panel Connector for Power System


Connector for Photovoltaic Description:


a. Application:Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
b. Construction: Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.



Connector for Photovoltaic Solar panel:



a. Simple on-site processing
b. Mating safety provided bykeyed housings
c. Multiple plugging and unplugging cycles
d. Accomodates PV cable with different insulation diameters
e. High current carrying capacity
f.  TUV approved



Product Name Connector
Rated Current 30A(2.5~6mm2)
Rated Voltage 1000V DC
Test Voltage 6000V(50HZ, 1min)
Overvoltage category/Pollution degree CAT III/2
Contact resistence of plug connectors 1 mΩ
Conatct material Copper, Ag plated
Insulation material PC
Degree of protection IP20/IP67
Flame class UL94-V0
Safety class II
Suitable cable 2.5-6mm2
Insertion force/Withdrawal force ≤50N/ ≥50N
Connecting system Crimp connection
Temperature range -40ºC~+125ºC
Packing unit 1000pcs
Minimum order quantity 1000pcs
Weight per Piece (excluding packing) 25g
Custom tariff number 8536690000
Country of origin China



Advantage:

• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:


1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

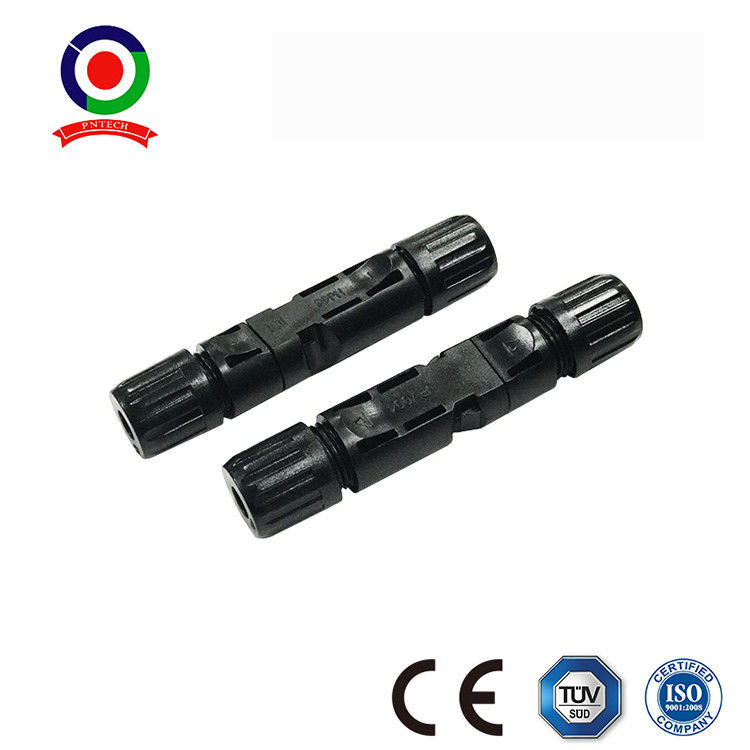

Picture of  connector

Waterproof Multi Contact Solar Panel Connectors TUV Approved For Power System 0
