Dust Resistant MC4 Cable Connectors Quick Connect High Mechanical Endurance

China Dust Resistant MC4 Cable Connectors Quick Connect High Mechanical Endurance supplier
Dust Resistant MC4 Cable Connectors Quick Connect High Mechanical Endurance supplier Dust Resistant MC4 Cable Connectors Quick Connect High Mechanical Endurance supplier

Large Image :  Dust Resistant MC4 Cable Connectors Quick Connect High Mechanical Endurance

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV004

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation

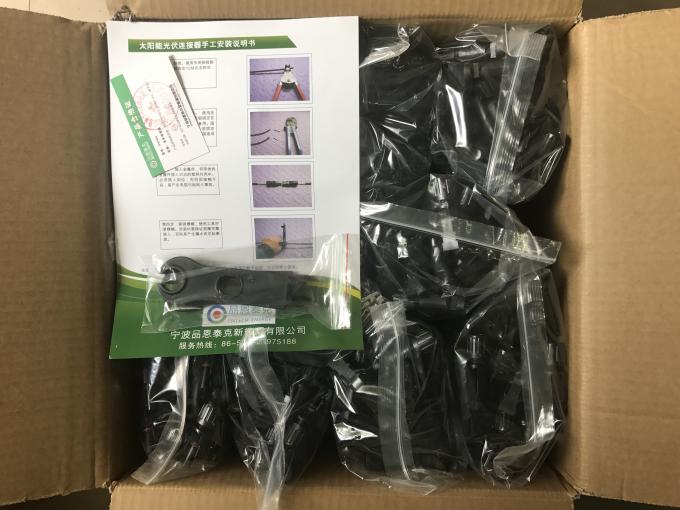

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Contact Now
Detailed Product Description
Product Name: Solar Connector Contact Material: Silver Plated Copper
Gender: Female And Male Rated Current:: 30A
Contact Resistance: ≤5mΩ Color: Black


TUV IP67 waterproof Solar Connector PC material 30A Male Female for solar panel

The Features of solar connector


Rated current: 30A (2.5-4.0mm2)
Degree of protection: IP2 */IP67
Rated voltage: 1000V DC
Flammability rating: UL94-V0
Test voltage: 6000V (50Hz, 1min)
Safety: II
Overvoltage category/pollution Index: CATIII / 2
Adapter wire: OD4.5-7.0 (2.5-4.0mm2)
Connector contact resistance: 0.5m
Insertion/extraction force: less or equal to 50N/equal or greater than 50N
Connector conductor material: copper, tin
Connection: crimp
Connector Insulation material: PC
Operating temperature range: -40 - +90°C



Rate voltage: 1000v
Rated current: 22A(2.5mm2) , 30A(4mm2,6mm2)
Test voltage: 6KV(50Hz)
Protect degree: IP67/IP2X
Insulation material: PC/PA/PPO/TPE
Contact material: Silver plated copper
Operating temperature: -40°C~+90°C
Safe class: 2
Flame class: UL94-V0
Contact resistance of plug connectors: ≤5mΩ
Insertion force: ≤50N
Withdraw force: ≥50N
Suitable cable: 2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system: Snap in

Product No. PV004
Rated voltage TUV 1000V DC / UL 600V DC
Rated current 30A
Suitable cable cross sections 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG
Terminal size Φ4.0mm
Test voltage DC 8KV 1min
Pollution degree 2
Protection class Class II
Terminal Material Tinned copper
Contact resistance ≤ 5mΩ
Insulation Materials PC
IP rating IP67(IEC 60529)
Pull-out force ≥ 50N
Insertion Force ≤ 50N
Test temperature -40ºC~ +85ºC
Flame Class UL94V - 0


Advantage:

• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

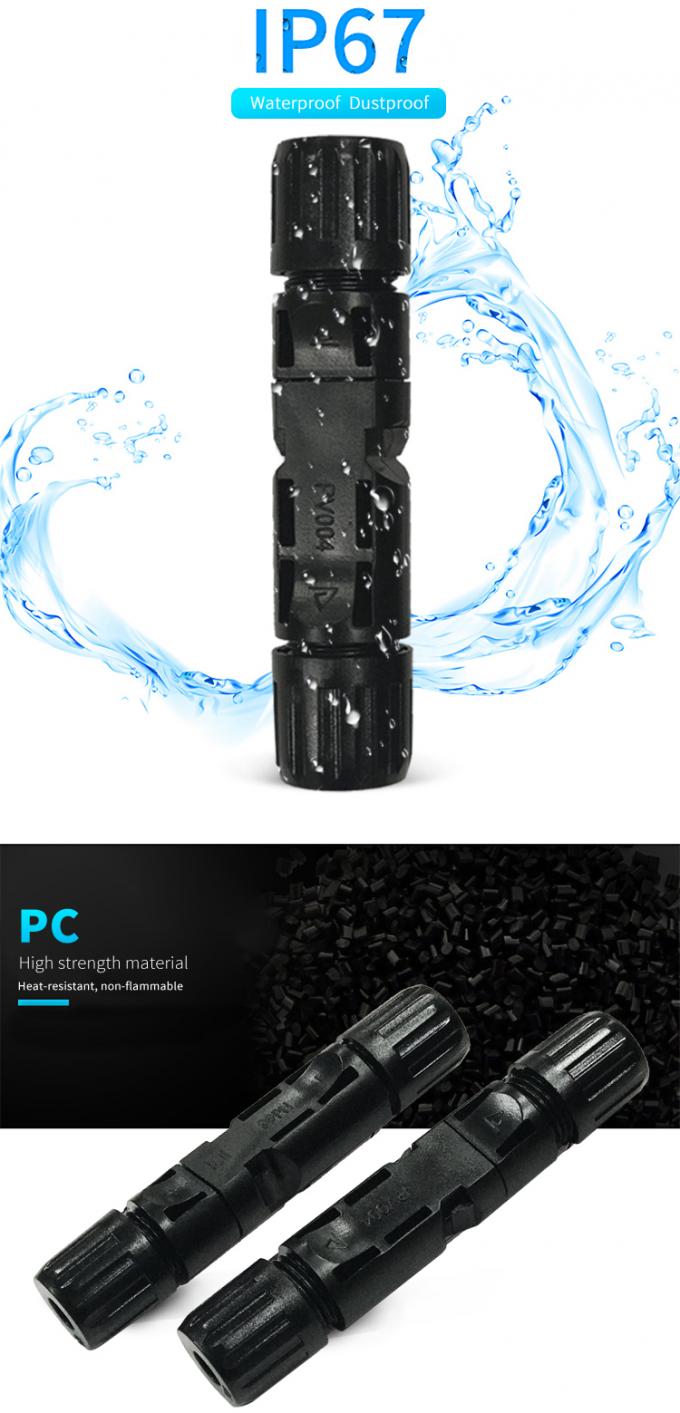

Picture of solar connector
Dust Resistant MC4 Cable Connectors Quick Connect High Mechanical Endurance
Dust Resistant MC4 Cable Connectors Quick Connect High Mechanical Endurance
