Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV004
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm
Delivery Time: 3-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs per day
Product Name: |
Solar Connector |
Contact Material: |
Silver Plated Copper |
Gender: |
Female And Male |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Color: |
Black |
Product Name: |
Solar Connector |
Contact Material: |
Silver Plated Copper |
Gender: |
Female And Male |
Rated Current:: |
30A |
Contact Resistance: |
≤5mΩ |
Color: |
Black |

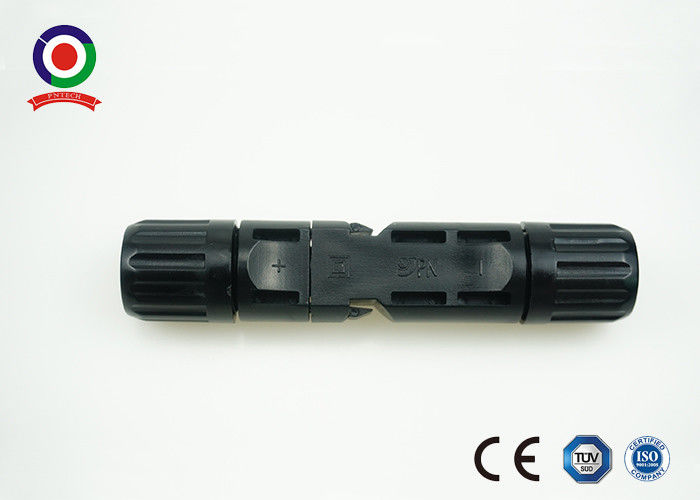

TUV IP67 waterproof Solar Connector PC material 30A Male Female for solar panel
The Features of solar connector
Rated current: 30A (2.5-4.0mm2)
Degree of protection: IP2 */IP67
Rated voltage: 1000V DC
Flammability rating: UL94-V0
Test voltage: 6000V (50Hz, 1min)
Safety: II
Overvoltage category/pollution Index: CATIII / 2
Adapter wire: OD4.5-7.0 (2.5-4.0mm2)
Connector contact resistance: 0.5m
Insertion/extraction force: less or equal to 50N/equal or greater than 50N
Connector conductor material: copper, tin
Connection: crimp
Connector Insulation material: PC
Operating temperature range: -40 - +90°C
| Rate voltage: | 1000v |
| Rated current: | 22A(2.5mm2) , 30A(4mm2,6mm2) |
| Test voltage: | 6KV(50Hz) |
| Protect degree: | IP67/IP2X |
| Insulation material: | PC/PA/PPO/TPE |
| Contact material: | Silver plated copper |
| Operating temperature: | -40°C~+90°C |
| Safe class: | 2 |
| Flame class: | UL94-V0 |
| Contact resistance of plug connectors: | ≤5mΩ |
| Insertion force: | ≤50N |
| Withdraw force: | ≥50N |
| Suitable cable: | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
| Locking system: | Snap in |
| Product No. | PV004 |
| Rated voltage | TUV 1000V DC / UL 600V DC |
| Rated current | 30A |
| Suitable cable cross sections | 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG |
| Terminal size | Φ4.0mm |
| Test voltage | DC 8KV 1min |
| Pollution degree | 2 |
| Protection class | Class II |
| Terminal Material | Tinned copper |
| Contact resistance | ≤ 5mΩ |
| Insulation Materials | PC |
| IP rating | IP67(IEC 60529) |
| Pull-out force | ≥ 50N |
| Insertion Force | ≤ 50N |
| Test temperature | -40ºC~ +85ºC |
| Flame Class | UL94V - 0 |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
