Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 1x10mm2
Payment & Shipping Terms
Minimum Order Quantity: 100m / roll
Price: Negotiation
Packaging Details: 100m per roll 200m per carton size 42x42x22cm
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Product Name: |
Solar Photovoltaic Cable 10mm2 |
Core: |
1 Core |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
8.5mm |
Structure: |
80/0.4mm |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.8KV |
Product Name: |
Solar Photovoltaic Cable 10mm2 |
Core: |
1 Core |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
8.5mm |
Structure: |
80/0.4mm |
Rated Voltage: |
AC Uo/U0.6~1.0KV , DC1.8KV |
TUV Solar Cable 10mm2 Copper Conductor Material and XLPE Insulation Material
PV1-F tinned copper solar cable 10mm2
(1) Conductor: Tinned annealed copper
(2) Insulation:120°C XLPE , black
(3) Jacket:120°C XLPE , black or red
Marking:
TüV 2 PfG 1169 PV1-F 1×10mm2 AC 0.6/1.0KV DC 1.8KV NINGBO PNTECH NEW ENERGY CO.,LTD.
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x10mm2 | 10mm2 | 80x φ0.4mm | 4.4mm | 1.95 Ω/km | 8.5mm | 1800VDC | 98A |
Fire Resistant Cables Description:
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 4mm2, 6mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

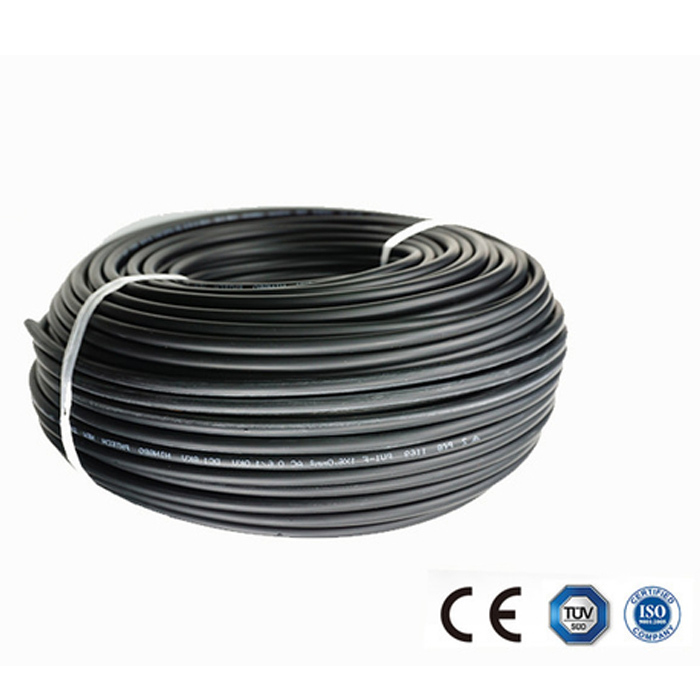

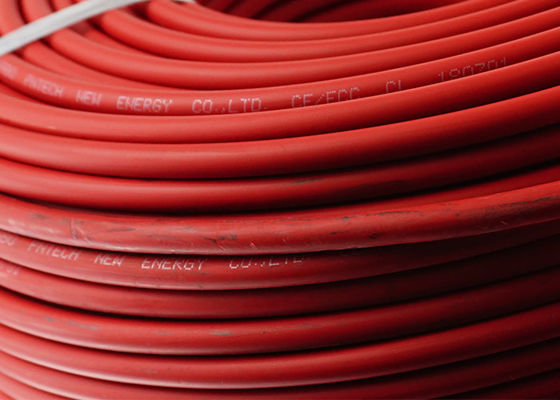

Pictures of 10mm2 Solar Cable
