Non Toxic Solar System Cable 10mm2 Deformation Resistant At High Temperature

China Non Toxic Solar System Cable 10mm2 Deformation Resistant At High Temperature supplier
Non Toxic Solar System Cable 10mm2 Deformation Resistant At High Temperature supplier Non Toxic Solar System Cable 10mm2 Deformation Resistant At High Temperature supplier

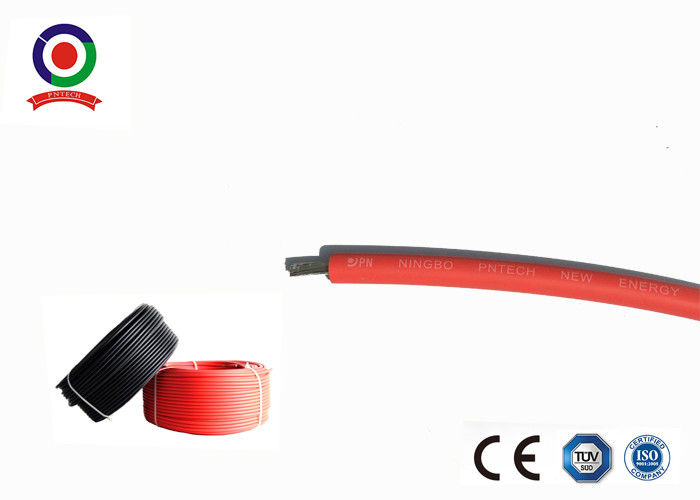

Large Image :  Non Toxic Solar System Cable 10mm2 Deformation Resistant At High Temperature

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 1x10mm2

Payment & Shipping Terms:

Minimum Order Quantity: 100m / roll
Price: Negotiation
Packaging Details: 100m per roll 200m per carton size 42x42x22cm
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Contact Now
Detailed Product Description
Product Name: Solar Photovoltaic Cable 10mm2 Core: 1 Core
Conductor Material: Stranded Tinned Copper Cable OD: 8.5mm
Structure: 80/0.4mm Color: Black / Red



XLPE TUV 2 pfg 1169 08.07 solar power cable 10mm2 tinned copper for solar system



PV1-F tinned copper solar power cable 10mm2



2 PfG 1169/08.2007 covers the single core flexible cables (wires) used in DC sides of photovoltaic system which max. permissible DC voltage is 1.8kV(line to line, non ground system). The product is applicable to the environment which safety degree is under Class II,and it can be parallel used.



Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
PV-1x10mm2 10mm2 80x φ0.4mm 4.4mm 1.95 Ω/km 8.5mm 1800VDC 98A



Fire Resistant Cables Description:



A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.

Construction:Tinned copper,according toVDE0295/IEC60228,Class5

B. Material Properties/Standards:

1. Fire-resistant performance:IEC60332-1.

2. Smoke emission:IEC61034;EN50268-2

3. Low fire load:DIN51900

4. Approvals:TUV2PfG 1169/08.2007 PV1-F.

5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502


Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 4mm2, 6mm2 and 16mm2, as well as dual cores,

please consult me directly if necessary)

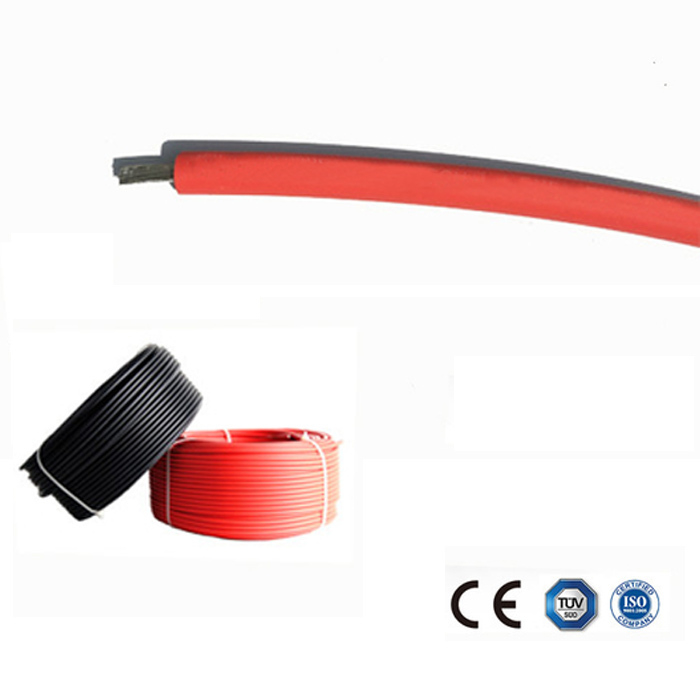

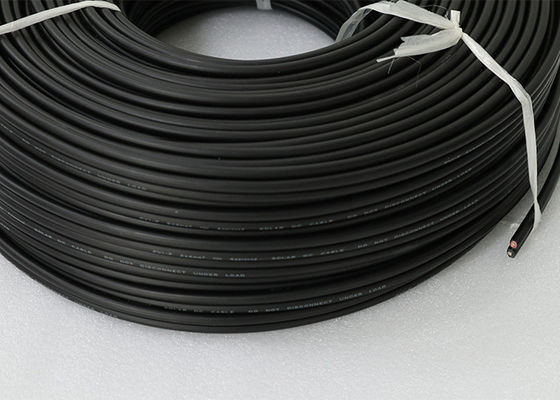

Pictures of 10mm2 Solar Power Cable

Non Toxic Solar System Cable 10mm2 Deformation Resistant At High Temperature
