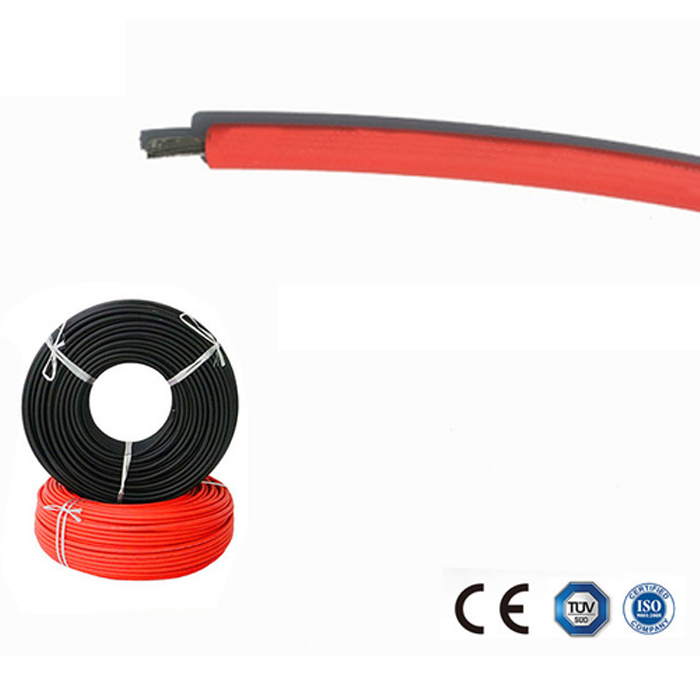

Excellent Flexibility Solar Cable 4mm2 6.0mm OD Stable Electrical Properties
XLPE double insulation pv1-f solar pv cable 4mm2 UV Resistance for power station
PV1-F tinned copper solar pv cable 4mm2
Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c -40°F upto +257°F
Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X Occasionally moved>5X
| Type |
Cross |
Strand |
Conductor |
Conductor |
Outer |
Rated |
Rated |
Weight |
| section |
design |
diameter |
resistance |
diameter |
voltage |
current |
| mm² |
No.x ø (mm) |
mm |
Ω /km |
mm |
VAC/DC |
A |
Kg/km |
| PV-1*1.5 mm² |
1.5 |
30x ø 0.25 |
1.6 |
13.5 |
4.5 |
1000/1800 |
30 |
35 |
| PV-1*2.5 mm² |
2.5 |
50x ø 0.25 |
2.0 |
8.21 |
4.9 |
1000/1800 |
41 |
50 |
| PV-1*4.0 mm² |
4.0 |
56x ø 0.3 |
2.6 |
5.09 |
5.1 |
1000/1800 |
55 |
70 |
| PV-1*6.0 mm² |
6.0 |
84x ø 0.3 |
3.3 |
3.39 |
6.1 |
1000/1800 |
70 |
95 |
| PV-1*10.0 mm² |
10.0 |
80x ø 0.4 |
4.4 |
1.95 |
7.2 |
1000/1800 |
98 |
155 |
| PV-1*16 mm² |
16.0 |
120x ø 0.4 |
5.2 |
1.24 |
10.2 |
1000/1800 |
132 |
230 |
| PV-1*25 mm² |
25.0 |
196x ø 0.40 |
7.4 |
0.795 |
12.0 |
1000/1800 |
176 |
341 |
| PV-1*35 mm² |
35.0 |
276x ø 0.40 |
9.00 |
0.565 |
14.0 |
1000/1800 |
218 |
467 |
Fire Resistant Cables Description:
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
| Name |
PV Cable |
| The product description |
Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features |
Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. |
| Cable protection level Ⅱ level. |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. |
| It conforms to ROHS, and the insulation resistance is small after immersion. |
| Electrical |
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. |
| Cable structure |
Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. |
| Sheath: low smoke and halogen free material thickness > 0.5mm. |
| Detailed parameters |
Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)
