Product Details
Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 1x4mm2
Payment & Shipping Terms
Minimum Order Quantity: 250m / roll
Price: Negotiation
Packaging Details: 250m per roll 500m per carton size 42x42x22cm
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Product Name: |
4mm2 DC Solar Cable |
Insulation Material: |
XLPE |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
6.0mm |
Structure: |
56/0.3mm |
Color: |
Black / Red |
Product Name: |
4mm2 DC Solar Cable |
Insulation Material: |
XLPE |
Conductor Material: |
Stranded Tinned Copper |
Cable OD: |
6.0mm |
Structure: |
56/0.3mm |
Color: |
Black / Red |
TUV approved 2PfG 1169 PV1-F 1x4mm2 XLPE insulate DC solar cable tinned copper
PV1-F tinned copper pv 4mm2 dc solar cable
1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3. Halogen free and low smoke, Rohs standard.
4. UV resistance.
5. Temperature rating:-40°C to 125°C, cold resistance.
6. TUV certification, TUV2Pfg1169.
7. Power cable for photovoltaic system.
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x4mm2 | 4.0mm2 | 56x φ0.3mm | 2.6mm | 5.09 Ω/km | 6.1mm | 1800VDC | 70A |
Fire Resistant Cables Description:
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502
Application :
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. | |
| Cable protection level Ⅱ level. | |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. | |
| It conforms to ROHS, and the insulation resistance is small after immersion. | |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm | |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. | |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire | |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. | |
| Sheath: low smoke and halogen free material thickness > 0.5mm. | |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) | |
| Limited voltage: AC0.6/1kv dc1.8kv. |
(We also produce single core of 2.5mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

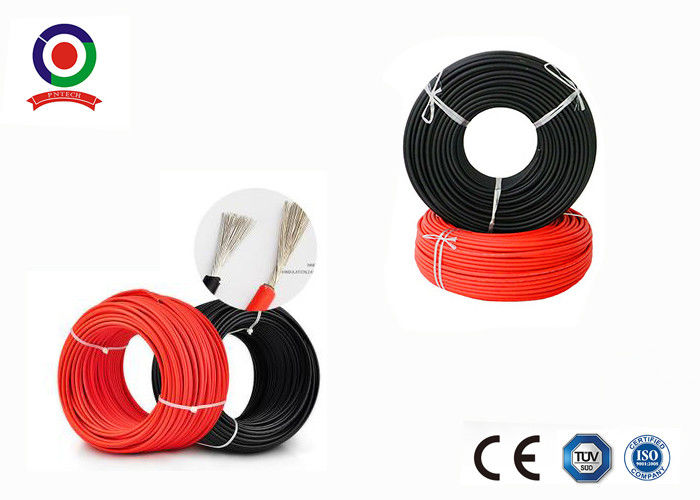

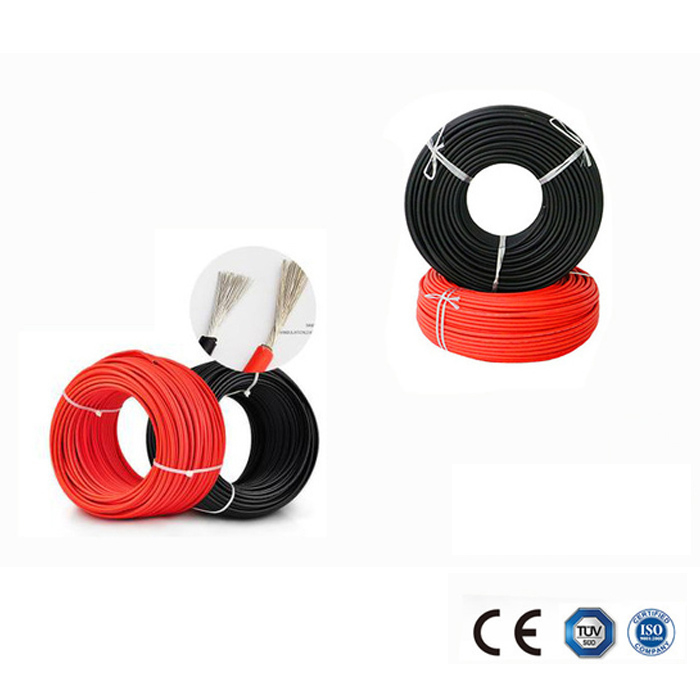

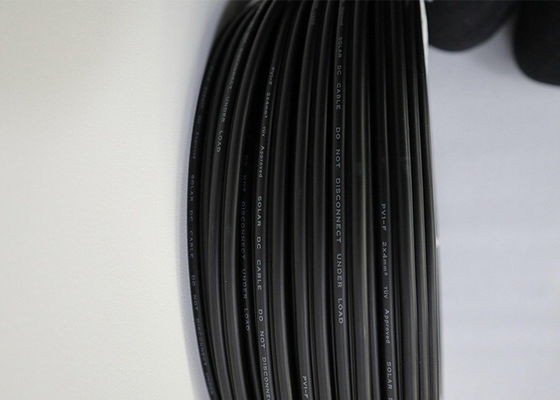

Pictures of 4mm2 DC Solar Cable
