Power System Solar PV Cable Flame Retardant Excellent Abrasion Resistance

Power System Solar PV Cable Flame Retardant Excellent Abrasion Resistance
Power System Solar PV Cable Flame Retardant Excellent Abrasion Resistance Power System Solar PV Cable Flame Retardant Excellent Abrasion Resistance

Large Image :  Power System Solar PV Cable Flame Retardant Excellent Abrasion Resistance

Product Details:

Place of Origin: China
Brand Name: Pntech
Certification: TUV/CE/ISO9001
Model Number: PV1-F 1x2.5mm2

Payment & Shipping Terms:

Minimum Order Quantity: 250m / roll
Price: Negotiation
Packaging Details: 250m per roll 500m per carton size 42x42x22cm
Delivery Time: 3-7days
Payment Terms: L/C, T/T
Supply Ability: 70000m per day
Detailed Product Description
Product Name: 2.5mm2 Solar Pv Cable Insulation Thickness: 0.5mm
Insulation Material: XLPE Conductor Material: Stranded Tinned Copper
Cable OD: 5.3mm Structure: 50/0.25mm
Rated Voltage: AC Uo/U0.6~1.0KV , DC1.8KV Color: Black / Red
High Light:

solar dc cable

,

pv dc cable



2.5mm2 TUV 2pfg 1169 Approved Double Insulated Solar PV Cable for Power System



PV1-F 2PFG 1169  2.5mm2 solar pv cable



1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.

2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.

3. Halogen free and low smoke, Rohs standard.

4. UV resistance.

5. Temperature rating:-40°C to 125°C, cold resistance.

6. TUV certification, TUV2Pfg1169-1.

7. Power cable for photovoltaic system.



TUV PV Cable Fire Resistant Cables Description:



A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.

Construction:Tinned copper,according toVDE0295/IEC60228,Class5

B. Material Properties/Standards:

1. Fire-resistant performance:IEC60332-1.

2. Smoke emission:IEC61034;EN50268-2

3. Low fire load:DIN51900

4. Approvals:TUV2PfG 1169/08.2007 PV1-F.

5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502


Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .



Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
PV-1x2.5mm2 2.5mm2 50x φ0.25mm 2.0mm 8.21 Ω/km 5.3mm 1800VDC 50A



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 4mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,

please consult me directly if necessary)

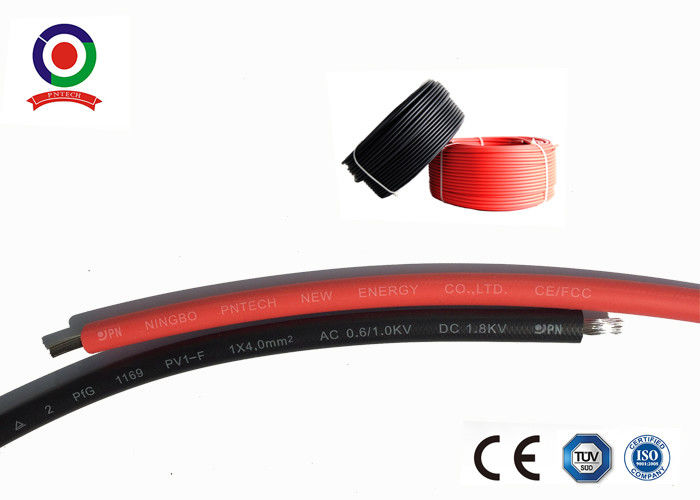

Pictures of 2.5mm Solar PV Cable



Power System Solar PV Cable Flame Retardant Excellent Abrasion Resistance 0
